Crankshaft Front Seal: Removal

WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
  1. Remove the crankshaft pulley. For additional information, refer to Crankshaft Pulley .
    2. NOTE: Use extreme care when removing the slinger or damage to the engine front cover may occur.

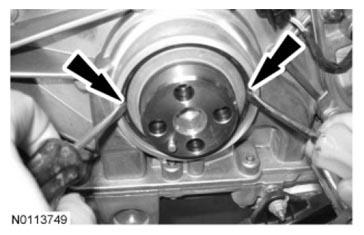

    Fig 1: Removing Front Crankshaft Slinger
    G07480845Courtesy of FORD MOTOR CO.
  2. Using 2 pocket screwdrivers, carefully remove and discard the front crankshaft slinger.
    • It will be necessary to remove the slinger from the sides as well as the top and bottom.
    3. NOTE: Do not scratch or damage the crankshaft during removal or installation of the front crankshaft seal.

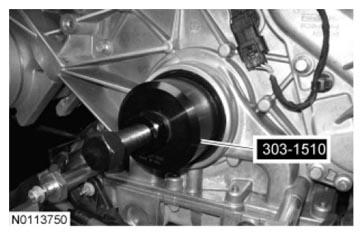

    Fig 2: Removing Front Crankshaft Seal From Engine Front Cover
    G07480846Courtesy of FORD MOTOR CO.
  3. Using the Front Crank Seal Remover, remove and discard the front crankshaft seal from the engine front cover.
  4. Clean and inspect the crankshaft sealing surface.
