Crankshaft End Play
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS CHART
| Dial Indicator Gauge with Holding Fixture 100-002 (TOOL-4201-C) or equivalent |

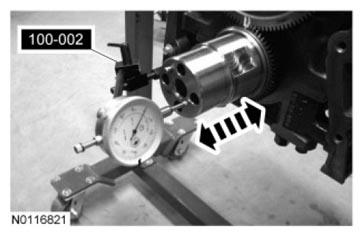

- Install the Dial Indicator Gauge with Holding Fixture, check the crankshaft end play.
- Position the crankshaft to the rear of the cylinder block.
- Zero the Dial Indicator Gauge.
- Move the crankshaft to the front of the cylinder block. Record the measurement. For additional information, refer to Specifications .
