Crankshaft Connecting Rod Bearing Journal Diameter
WARNING: This page is about a different car, the 2012 Ford Pickup, 2012 Ford F550 Super Duty, 2012 Ford F450 Super Duty, and 2012 Ford Cab & Chassis. However, it is still accessible from the selected car via links, so may be relevant.
- Inspect crankshaft journals for scratches, grooves and scoring.

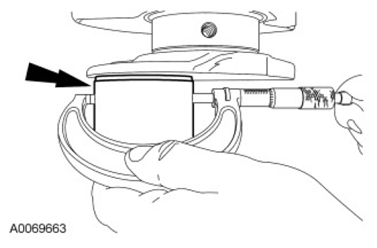

- Use a 50-75 mm (2-3 in) micrometer to measure the diameter of each journal. Measure each journal at 2 points, 90 degrees apart. Move the micrometer over the entire width of the journal. For additional information, refer to Specifications .
