Removal and Installation

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
  1. Using a suitable trim tool, release the 2 clips on the outer edge of the window control switch bezel and pull the window control switch assembly straight upward.

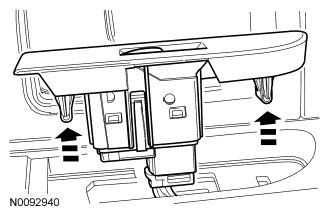

    Fig 1: Releasing Clips On Outer Edge Of Window Control Switch Bezel
    G06458937Courtesy of FORD MOTOR CO.
  2. Disconnect the window control switch electrical connector.
  3. Release the tabs and remove the window control switch from the bezel.
  4. To install, reverse the removal procedure.
