Window Control Switch - Rear: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: LH shown in illustration, RH similar.

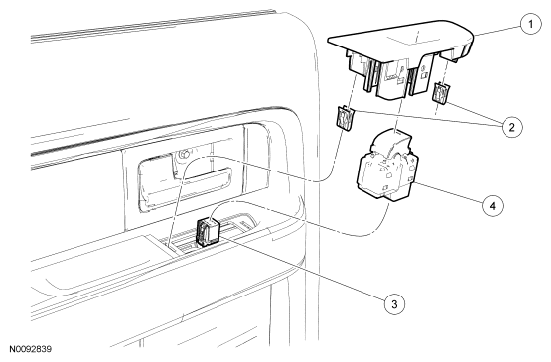

Fig 1: Identifying Rear Window Control Switch Components
G06173731Courtesy of FORD MOTOR CO.
Item Part Number Description
1 14528 RH/14527 LH Window control switch bezel
2 - Window control switch bezel clips (part of window control switch bezel) (2 required)
3 - Window control switch electrical connector
4 14529 Window control switch
