Power Sliding Rear Window
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

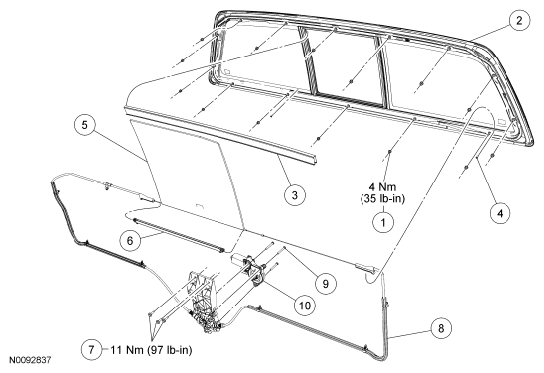

Fig 1: Rear Glass, Frames And Mechanisms Related Replacement Components With Torque Specifications (Power Sliding Rear Window)
| Item | Part Number | Description |
|---|---|---|
| 1 | N621901 | Rear window glass nut (14 required) |
| 2 | 420A26 | Rear power/manual sliding window glass assembly |
| 3 | 422A36 | Upper rail filler (part of window glass assembly) |
| 4 | - | Transition block screw (2 required) |
| 5 | 42006 | Power sliding glass panel |
| 6 | 422B68 | Center bracket guide |
| 7 | N605891 | Rear window glass regulator and motor assembly screws (3 required) |
| 8 | 1523394 | Rear window glass regulator and motor assembly |
| 9 | - | Rear window glass regulator motor screw (3 required) |
| 10 | 5423394 | Rear window glass regulator motor |
- For additional information, refer to the individual procedures in this information.
