Fixed Rear Window

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

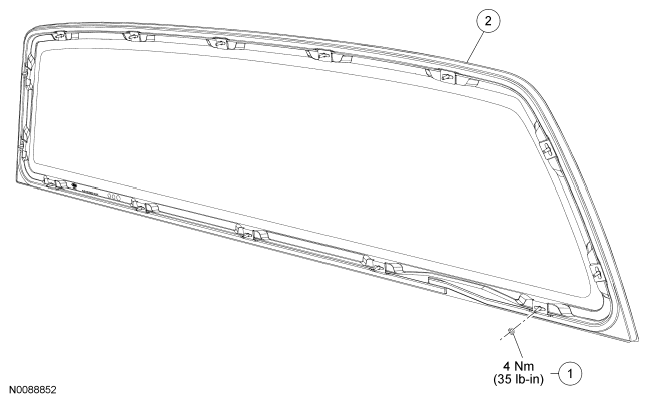

Fig 1: Rear Window Glass Nut And Rear Window Glass Assembly With Torque Specification With Torque Specifications
G06458905Courtesy of FORD MOTOR CO.
Item Part Number Description
1 N621901 Rear window glass nut (14 required)
2 42006 Rear window glass assembly
