Glass, Frames and Mechanisms - Exploded View, Rear Door: SuperCrew
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH side shown in illustration, RH side similar.

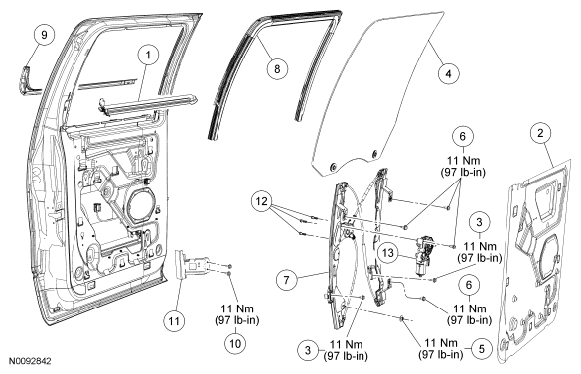

Fig 1: Exploded View Of Glass, Frames And Mechanisms - Rear Door (Supercrew) With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | 1625766 RH/1625767 LH | Rear door interior molding |
| 2 | 1627458 RH/1627459 LH | Rear door watershield |
| 3 | - | Rear door window glass-to-regulator assembly bolts (2 required) |
| 4 | 1625712 RH/1625713 LH | Rear door window glass |
| 5 | W711059 | Rear door window regulator nut |
| 6 | W714438 | Rear door window regulator bolts (4 required) |
| 7 | 1627000 RH/1627001 LH | Rear door window regulator assembly |
| 8 | 1625766 RH/1625767 LH | Rear door window glass top run |
| 9 | 1625596 RH/1625597 LH | Rear door exterior molding |
| 10 | W714438 | C-pillar below bracket bolt (2 required) |
| 11 | 16236B00 RH/16236B01 LH | C-pillar below belt bracket |
| 12 | - | Window regulator motor bolts (3 required) |
| 13 | - | Window regulator motor |
- For additional information, refer to the appropriate procedures in this information.
