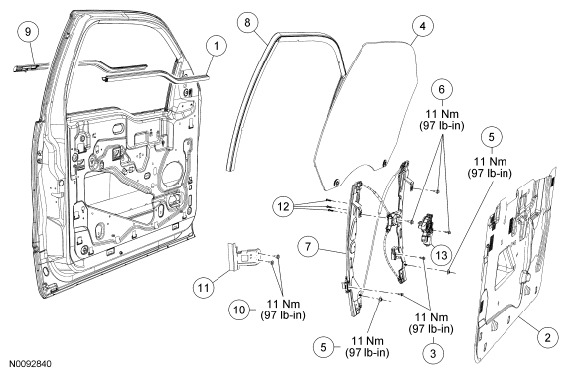

Glass, Frames and Mechanisms - Exploded View, Front Door
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH side shown in illustration, RH side similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | 1521434 RH/1521435 LH | Front door interior molding |
| 2 | 15237A04 RH/15237A05 LH | Front door watershield |
| 3 | - | Front door window glass-to-regulator assembly bolts (2 required) |
| 4 | 1521410 RH/1521411 LH | Front door window glass |
| 5 | W711059 | Front door window regulator nuts (2 required) |
| 6 | W714438 | Front door window regulator bolts (3 required) |
| 7 | 1523200 RH/1523201 LH | Front door window regulator assembly |
| 8 | 1521596 RH/1521597 LH | Front door glass top run |
| 9 | 1521452 RH/1521453 LH | Front door window glass exterior molding |
| 10 | W714438 | Front door below belt bracket bolts (2 required) |
| 11 | 15263A20 RH/15263A21 LH | Front door below belt bracket |
| 12 | - | Window regulator motor bolts (3 required) |
| 13 | - | Window regulator motor |
- For additional information, refer to the procedures in this information.
