Instrument Panel Dimmer Switch: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

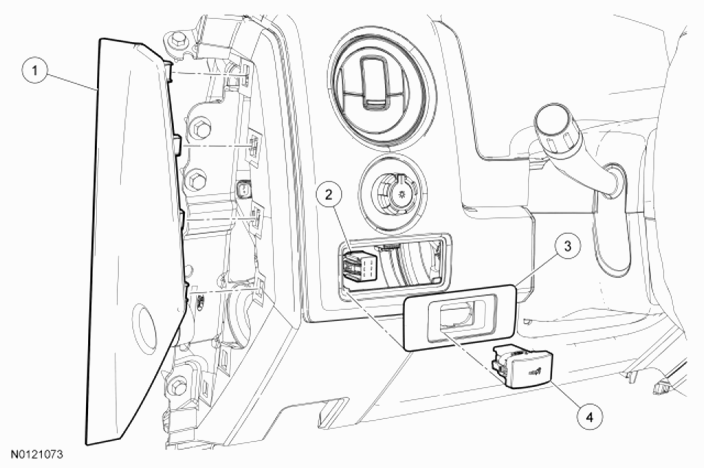

Fig 1: Identifying Instrument Panel Side Finish Panel, Electrical Connector, Instrument Panel Dimmer Switch And Bezel
| Item | Part Number | Description |
|---|---|---|
| 1 | 1504481 | Instrument panel side finish panel |
| 3 | - | Electrical connector (part of 14401) |
| 2 | 15042D82 | Instrument panel dimmer switch bezel |
| 4 | 11691 | Instrument panel dimmer switch |
