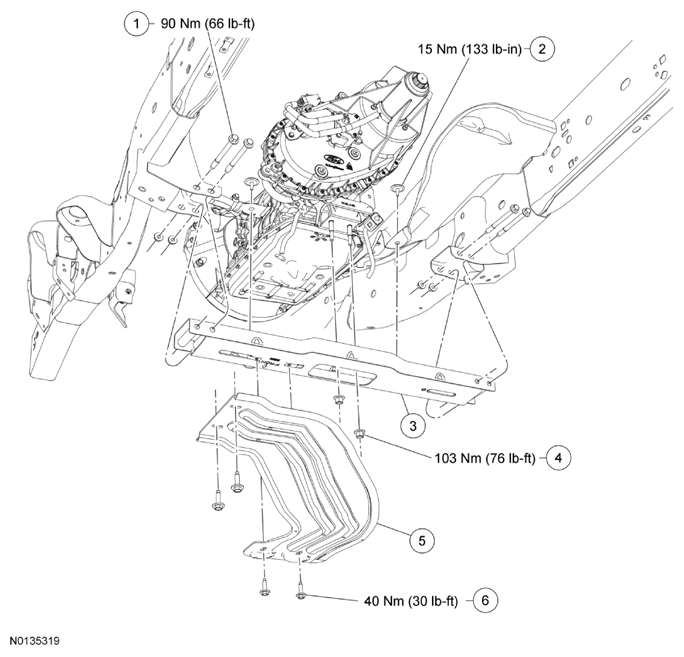

Transfer Case - Left Side
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
637077 |
Crossmember bolt (4 required) |
| 2 |
W707959-S |
Heat shield bolt (2 required) |
| 3 |
9740124 |
Crossmember |
| 4 |
N621945-S |
Transmission mount nut (2 required) |
| 5 |
7E063 |
Skid plate |
| 6 |
W503932-S |
Skid plate bolt (4 required) |
