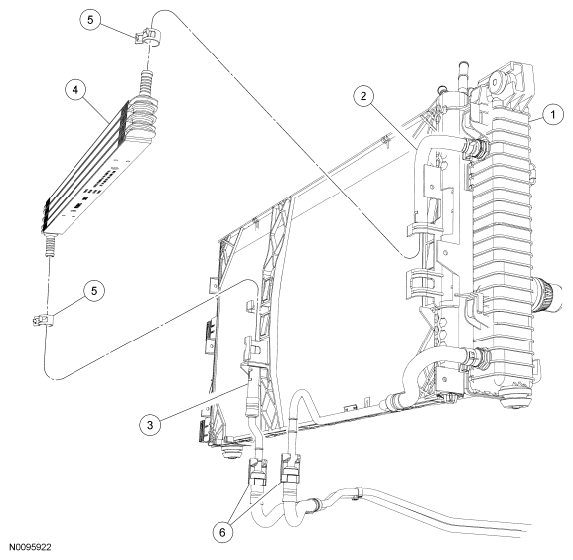

Transmission Cooling: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
8005 |
Radiator |
| 2 |
7C410 |
In-tank transmission fluid cooler outlet hose |
| 3 |
7B028 |
Auxiliary transmission fluid cooler outlet hose |
| 4 |
7A095 |
Auxiliary transmission fluid cooler |
| 5 |
7C107 |
Clamps |
| 6 |
7Z465 |
Transmission fluid cooler inlet and outlet tube secondary latches |
