Transmission Fluid Cooler Tubes - 3.5L GTDI, 3.7L: Installation

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Route the transmission fluid cooler tubes and position them in place.

NOTE: Inspect the transmission case to make sure that the transmission fluid cooler tube O-rings did not remain in the transmission case. Carefully remove and discard them from the case if retained.

Fig 1: Locating O-Rings On Transmission Fluid Cooler Tubes

Courtesy of FORD MOTOR CO.

Install 4 new O-rings on the transmission fluid cooler tubes.

NOTE: Install a new transmission fluid cooler tubes-to-transmission bolt.

Fig 2: Locating Transmission Fluid Cooler Tubes-To-Transmission Bolt

Courtesy of FORD MOTOR CO.

Install the transmission fluid cooler tubes and a new transmission fluid cooler tubes-to-transmission bolt.
- Tighten to 30 Nm (22 lb-ft).
If equipped, install the selector lever cable splash shield and the splash shield nut.
- Tighten to 12 Nm (106 lb-in).
Fig 3: Locating Selector Lever Cable Splash Shield Nut
Courtesy of FORD MOTOR CO.
Install the transmission fluid cooler tube bracket nut to the starter motor stud bolt.
- Tighten to 12 Nm (106 lb-in).

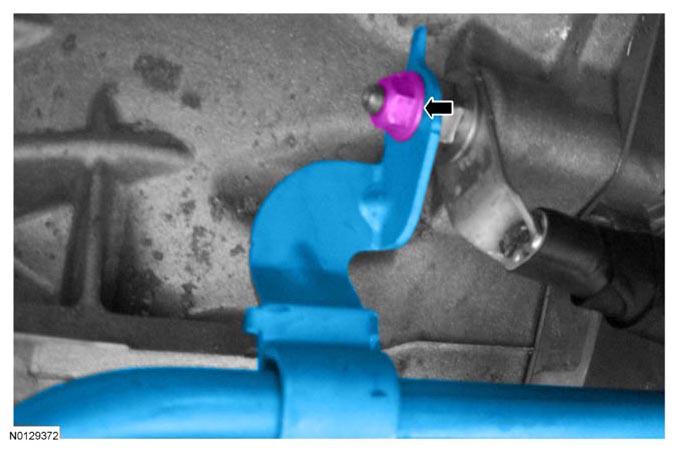

Fig 4: Locating Transmission Fluid Cooler Tube Bracket Nut To Starter Motor Stud Bolt
Courtesy of FORD MOTOR CO.
Install the transmission fluid cooler tube bracket nut to the front of the engine.
- Tighten to 12 Nm (106 lb-in).

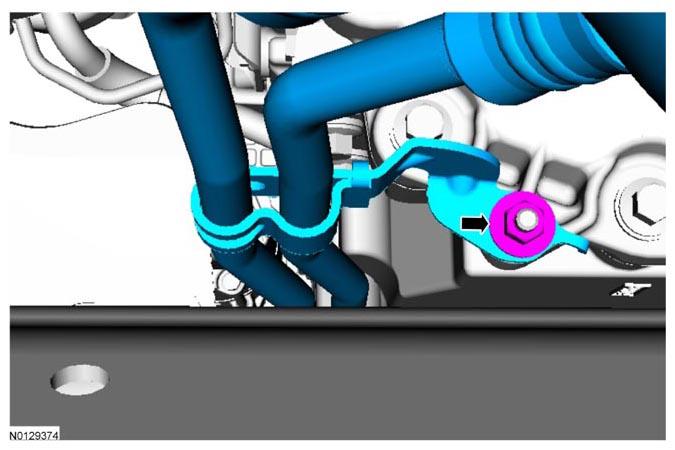

Fig 5: Locating Transmission Fluid Cooler Tube Bracket Nut
Courtesy of FORD MOTOR CO.
Connect the transmission fluid cooler tubes to the transmission fluid cooler hoses.

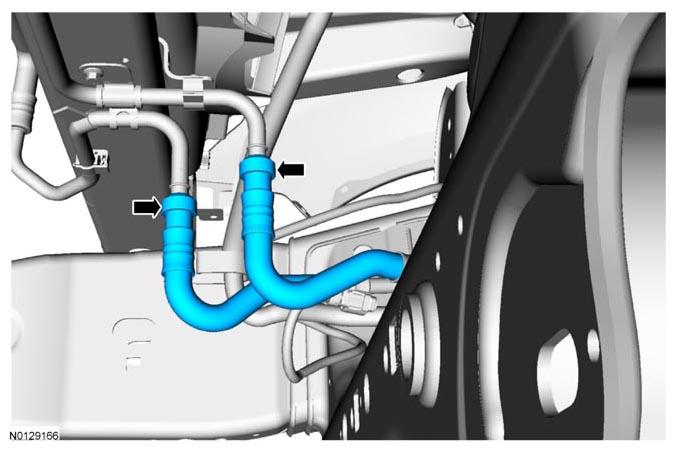

Fig 6: Locating Transmission Fluid Cooler Tubes To Transmission Fluid Cooler Hoses
Courtesy of FORD MOTOR CO.
Install the transmission fluid cooler tube secondary latches.

Fig 7: Locating Transmission Fluid Cooler Tube Secondary Latches
Courtesy of FORD MOTOR CO.
If equipped, install the skid plate and the 4 bolts.
- Tighten to 48 Nm (35 lb-ft).

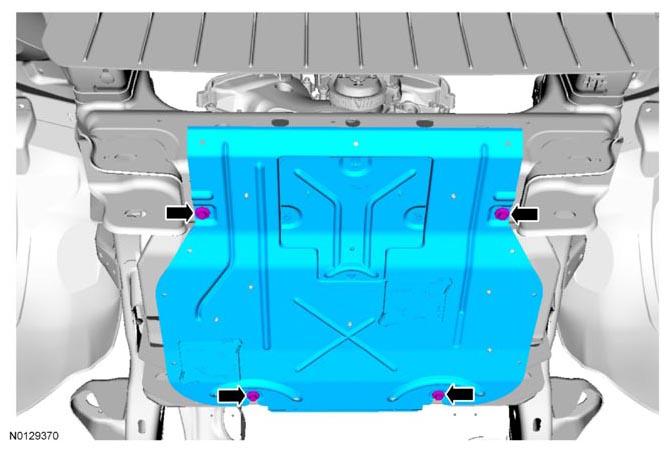

Fig 8: Locating Bolts And Skid Plate
Courtesy of FORD MOTOR CO.
If equipped, install the air deflector and the 12 pushpins.

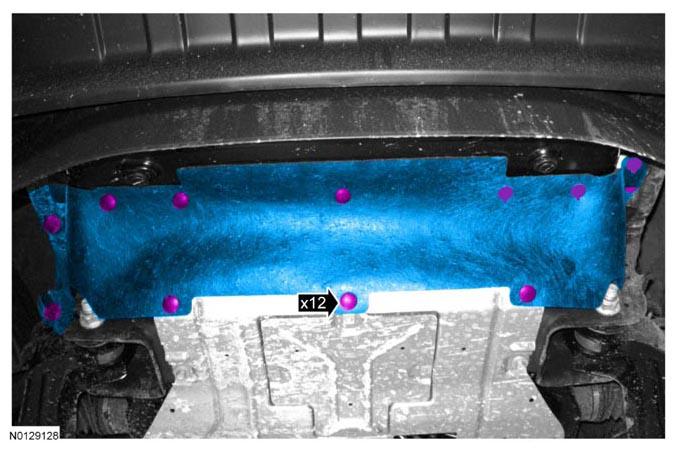

Fig 9: Locating Pushpins And Air Deflector
Courtesy of FORD MOTOR CO.
If equipped, install the splash shield and the 4 fasteners.

Fig 10: Locating Fasteners And Splash Shield
Courtesy of FORD MOTOR CO.
Fill the transmission with fluid and verify correct operation. For additional information, refer to Transmission Fluid Level Check in AUTOMATIC TRANSAXLE/TRANSMISSION - 6R80 .
Check for leaks.
