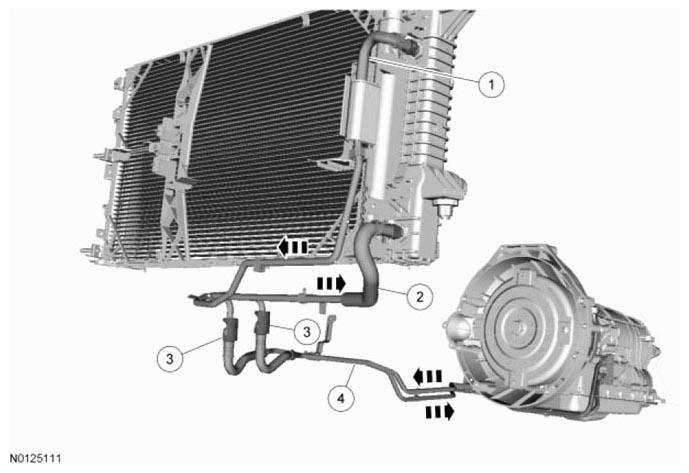

5.0L (4V) Engine Without an Auxiliary Transmission Fluid Cooler
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
7B028 |
In-tank transmission fluid cooler outlet tube |
| 2 |
7B028 |
Transmission fluid cooler tube radiator inlet |
| 3 |
7Z465 |
Transmission fluid cooler inlet and outlet tube secondary latches |
| 4 |
7R081 |
Transmission fluid cooler tubes |
