Turbocharger Oil Supply Tube LH: Installation

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

1.

Install the new turbocharger oil tube assembly O-ring seal. Lubricate the new turbocharger oil tube assembly O-ring seal with clean engine oil.

G00639832

Courtesy of FORD MOTOR COMPANY

2.

Install the turbocharger fitting and oil filter assembly. Tighten to 48 Nm (35 lb-ft).

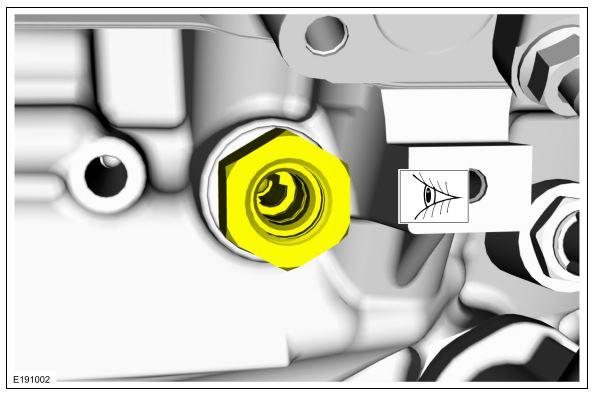

G00564754

Courtesy of FORD MOTOR COMPANY

3.

Install the new turbocharger oil tube assembly O-ring seal. Lubricate the new turbocharger oil tube assembly O-ring seal with clean engine oil.

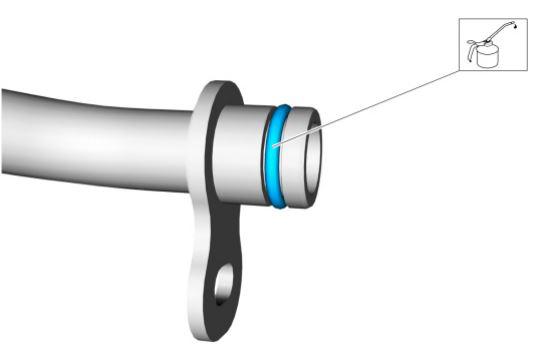

G00639833

Courtesy of FORD MOTOR COMPANY

4.

NOTE: Lubricate the cylinder block bore with clean engine oil.

Install the turbocharger oil tube assembly lower bolt in the following 2 stages.

Tighten to 8Nm (71 lb-in).

Tighten an additional 30 degrees.

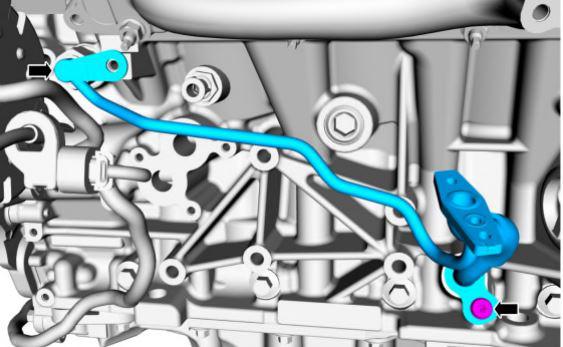

Courtesy of FORD MOTOR COMPANY

5.

Install the turbocharger - LH, refer to TURBOCHARGER - LH .
