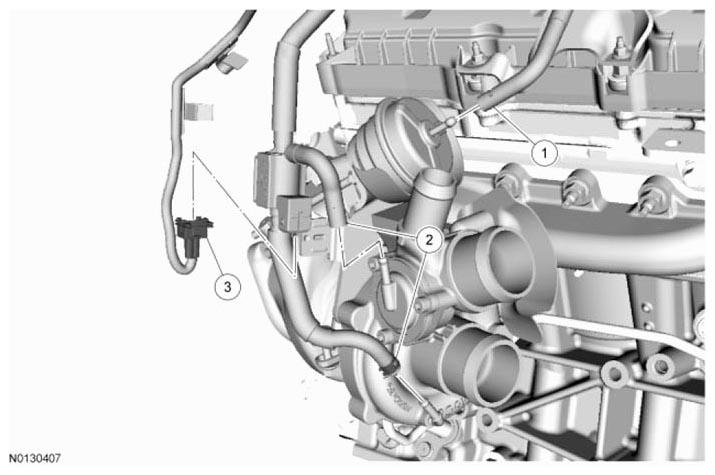

RH Turbocharger (View 2 of 4)
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
Heat insulating wrap remove for clarity.
Courtesy of FORD MOTOR CO.
| Item |
Part Number |
Description |
| 1 |
- |
RH turbocharger wastegate hose (part of 9E499) |
| 2 |
9E449 |
Vacuum hose connectors |
| 3 |
- |
Turbocharger bypass valve electrical connector (part of 12C508) |
