RH Turbocharger (View 1 of 4)

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

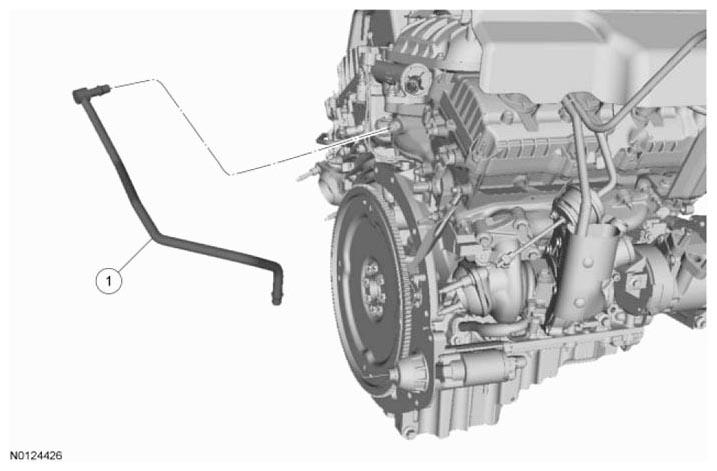

Fig 1: Identifying RH Turbocharger Coolant Supply Tube
G07411412Courtesy of FORD MOTOR CO.
Item Part Number Description
1 8A520 RH turbocharger coolant supply tube
