Thermostat Housing - 5.0L: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

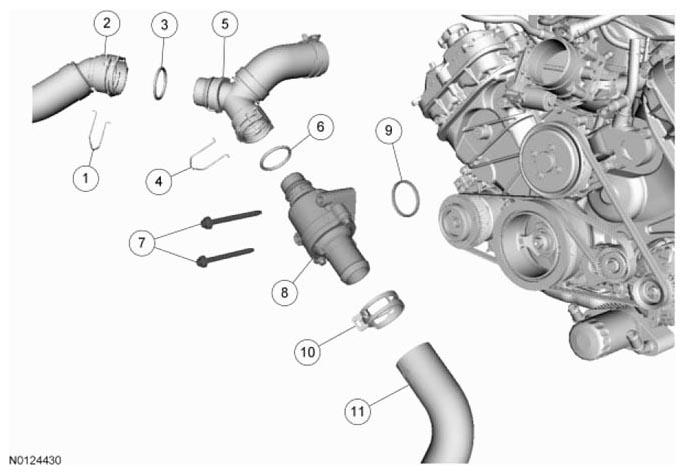

| Item | Part Number | Description |
|---|---|---|
| 1 | 8B365 | Upper radiator hose spring clip (part of 8260) |
| 2 | 8260 | Upper radiator hose |
| 3 | 8590 | Upper radiator hose O-ring seal (part of 8260) |
| 4 | 8B365 | Upper radiator hose T-connector spring clip (part of 8566) |
| 5 | 8590 | Upper radiator hose T-connector O-ring seal (part of 8566) |
| 6 | 8566 | Upper radiator hose T-connector |
| 7 | W713197 | Thermostat housing bolts - 10 Nm (89 lb-in) (2 required) |
| 8 | 8592 | Thermostat housing |
| 9 | 8590 | Thermostat housing gasket (part of 8592) |
| 10 | - | Lower radiator hose clamp (part of 8286) |
| 11 | 8286 | Lower radiator hose |
