Thermostat Housing - 3.5L GTDI: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Orange Antifreeze/Coolant Concentrated VC-3-B (US); CVC-3-B2 (Canada) |
WSS-M97B44-D |

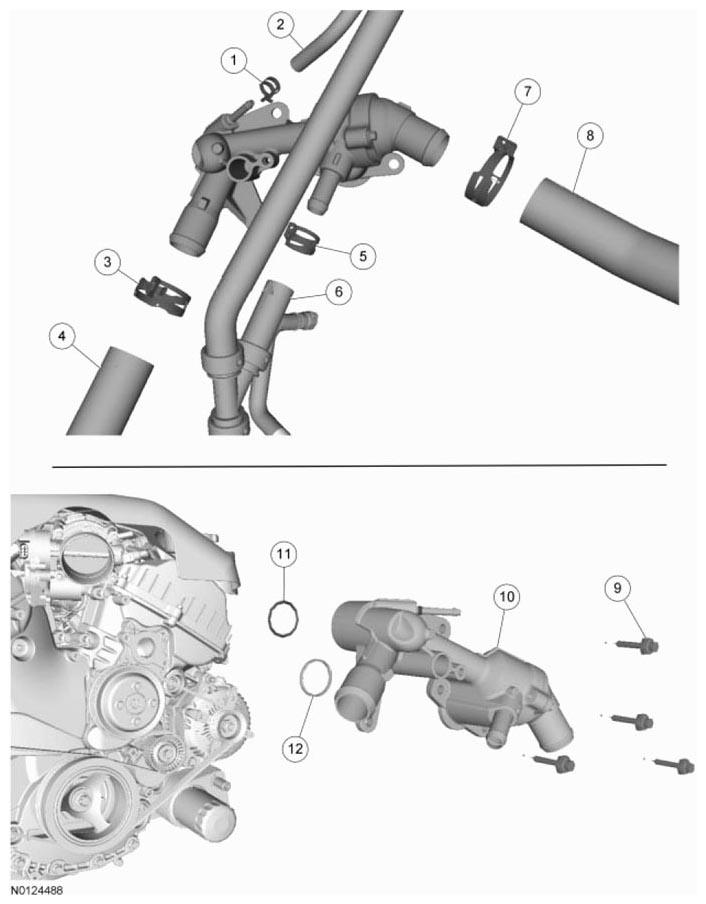

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Thermostat housing-to-degas bottle hose clamp (part of 8276) |
| 2 | 8276 | Thermostat housing-to-degas bottle hose |
| 3 | - | Upper radiator hose clamp (part of 8260) |
| 4 | 8260 | Upper radiator hose |
| 5 | - | Heater outlet hose clamp (part of 18472) |
| 6 | 18472 | Heater outlet hose |
| 7 | - | Lower radiator hose clamp (part of 8286) |
| 8 | 8286 | Lower radiator hose |
| 9 | W714841 | Thermostat housing bolts |
| 10 | 8592 | Thermostat housing |
| 11 | 8527 | Coolant inlet tube O-ring seal |
| 12 | 8590 | Thermostat housing inlet gasket (part of 8592) |
