Thermostat - 3.5L GTDI: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Orange Antifreeze/Coolant Concentrated VC-3-B (US); CVC-3-B2 (Canada) |
WSS-M97B44-D |

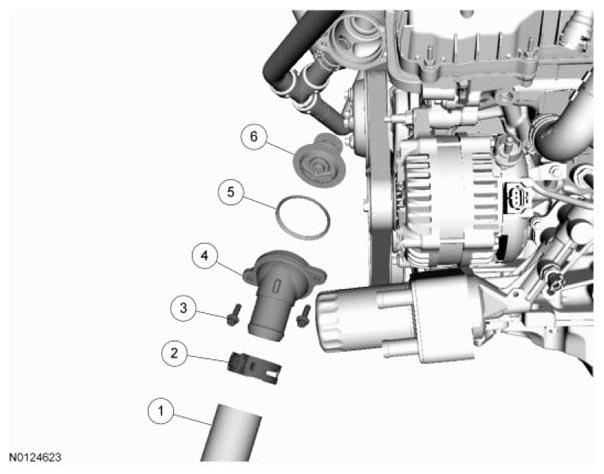

| Item | Part Number | Description |
|---|---|---|
| 1 | 8286 | Lower radiator hose |
| 2 | - | Lower radiator hose clamp (part of 8286) |
| 3 | W500014 | Coolant inlet connector bolt - 10 Nm (89 lb-in) (2 required) (part of 8592) |
| 4 | - | Coolant inlet connector (part of 8592) |
| 5 | 8255 | Thermostat O-ring seal (part of 8592) |
| 6 | 8575 | Thermostat (part of 8592) |
