Removal And Installation: Radiator: Installation

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

All engines

  1. Position the condenser core into the radiator locking tabs.
  2. Position the radiator/condenser core assembly into the vehicle and onto the radiator insulators.

    6.2L engine

  3. Connect the power steering cooler hose to the power steering cooler and position the clamp.
    Fig 1: Locating Power Steering Cooler Hose From Power Steering Cooler And Clamp
    G06455462Courtesy of FORD MOTOR CO.

    All engines

  4. Install the 2 radiator bolts.
    • Tighten to 15 Nm (133 lb-in).

    3.5L GTDI, 3.7L and 5.0L engines

  5. If equipped, attach the auxiliary transmission fluid cooler to the A/C condenser.

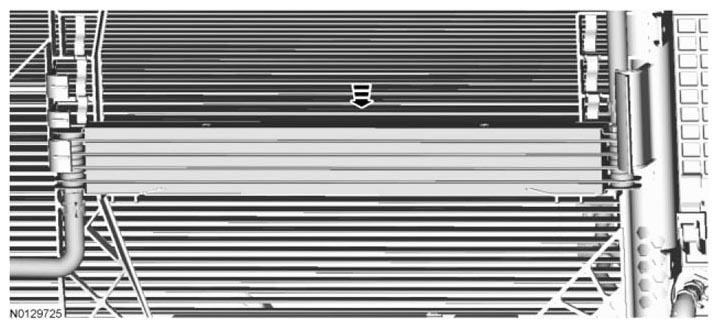

    Fig 2: Attaching Auxiliary Transmission Fluid Cooler To A/C Condenser
    G07411345Courtesy of FORD MOTOR CO.

    All engines

  6. Connect the transmission fluid cooler hoses to the radiator.

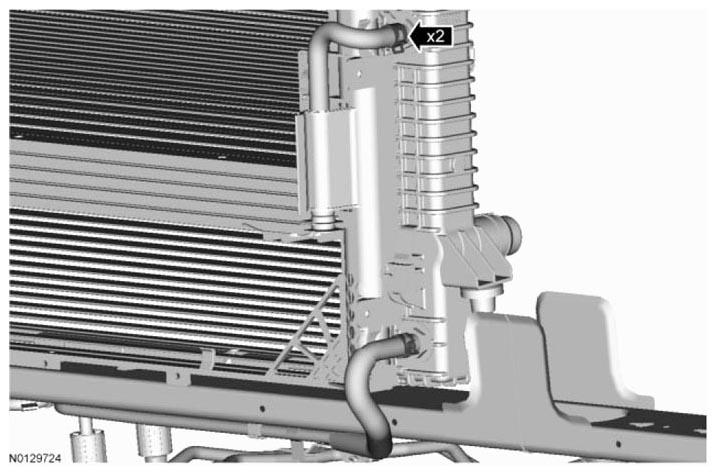

    Fig 3: Locating Transmission Fluid Cooler Hoses From Radiator
    G07411346Courtesy of FORD MOTOR CO.
  7. Connect the wiring harness retainer.

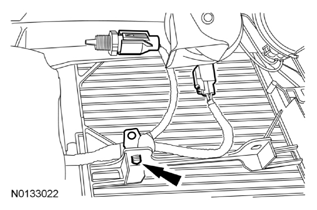

    Fig 4: Locating Wiring Harness Retainer
    G07962055Courtesy of FORD MOTOR CO.
  8. Connect the transmission fluid cooler tubes.
  9. Install the transmission cooler tube secondary latches.
  10. Using new gasket seals and O-ring seals, connect the A/C condenser fittings and install the bolt and nut.
    • Tighten to 15 Nm (133 lb-in).

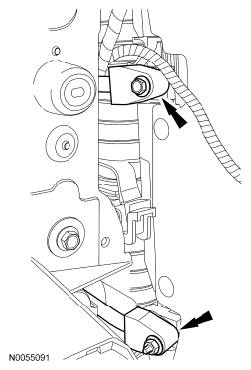

      Fig 5: Locating A/C Condenser Fittings Bolt And Nut
      G06126915Courtesy of FORD MOTOR CO.

    3.5L GTDI engines

  11. Position the lower air deflector, attach the 8 pushpins and turn the 4 quarter-turn retainers.
    Fig 6: Locating Lower Air Deflector Quarter-Turn Retainers And Pushpins
    G07411516Courtesy of FORD MOTOR CO.

    3.7L, 5.0L and 6.2L engines

  12. Install the 4 lower radiator air deflector-to-condenser pushpins.

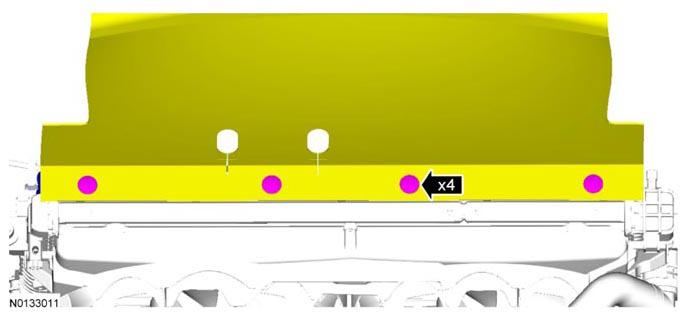

    Fig 7: Locating Lower Radiator Air Deflector-To-A/C Condenser Pushpins
    G07962052Courtesy of FORD MOTOR CO.

    All vehicles

  13. Connect the 3 RH and 2 LH air deflector-to-condenser pushpin retainers.

    3.5L Gasoline Turbocharged Direct Injection (GTDI), 3.7L and 5.0L engines

  14. Install the degas bottle and the 2 bolts.
    • Tighten to 17 Nm (150 lb-in).
      Fig 8: Locating Coolant Expansion Tank Bolts
      G06126924Courtesy of FORD MOTOR CO.
  15. Connect the MAF sensor electrical connector.

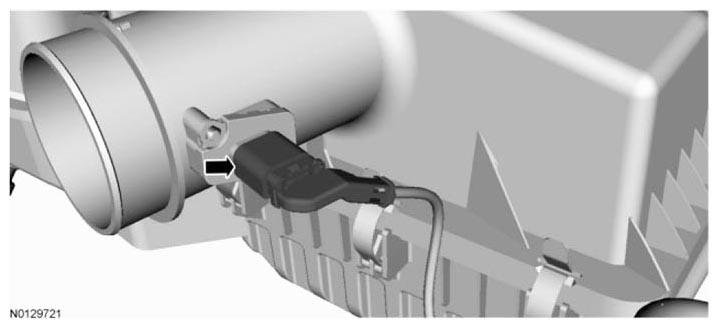

    Fig 9: Locating Mass Air Flow (MAF) Sensor Electrical Connector
    G07411334Courtesy of FORD MOTOR CO.
  16. Push the spring clip in place and connect the lower radiator hose quick connect coupling to the radiator, making sure the coupling is secure.
  17. Connect the radiator-to-degas bottle hose to the radiator and position the clamp.
  18. Connect the upper radiator hose to the radiator and position the clamp.

    6.2L engines

  19. Install lower radiator hose and the spring clip.
  20. Connect the radiator overflow hose.
  21. Connect the upper radiator hose and position the clamp.

    All engines

  22. Install the cooling fan motor and shroud. For additional information, refer to COOLING FAN MOTOR AND SHROUD  .

    6.2L engine

  23. Fill the power steering fluid reservoir with MERCON® V.

    All engines

  24. Fill the cooling system. For additional information, refer to COOLING SYSTEM DRAINING, FILLING AND BLEEDING  .
  25. Recharge the A/C system. For additional information, REFER to CLIMATE CONTROL SYSTEM - GENERAL INFORMATION AND DIAGNOSTICS .
  26. Check the transmission fluid and fill as necessary. For additional information, REFER to AUTOMATIC TRANSAXLE/TRANSMISSION - 6R80 .
