6.2L Engine
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

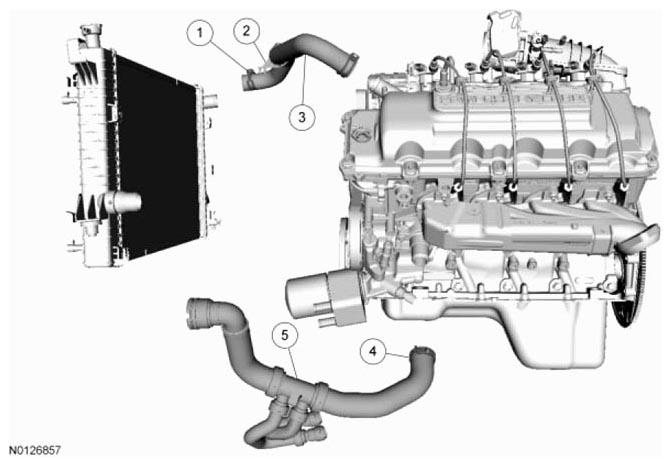

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Upper radiator hose clamp (2 required) (part of 8260) |
| 2 | 8W287 | Upper radiator hose retainer (part of 8286) |
| 3 | 8260 | Upper radiator hose |
| 4 | - | Lower radiator hose clamp (part of 8286) |
| 5 | 8286 | Lower radiator hose |
- For 3.5L GTDI, 3.7L and 5.0L engines, completely cover the accessory drive belts with waterproof plastic.
- For radiator hose quick connect couplings, pull the radiator hose spring clip up until the end of the clip is in the detent on the quick connect coupling and disconnect the radiator hose.
- To install, push the spring clip in place and connect the radiator hose quick connect coupling, making sure the coupling is secure.
NOTE:
Cover the accessory drive belts to prevent coolant contamination of the belts.
NOTE:
The quick connect coupling illustrated is to show the spring clip release location only. The quick connect coupling on the hose may differ.
