5.0L Engine
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
Courtesy of FORD MOTOR CO.

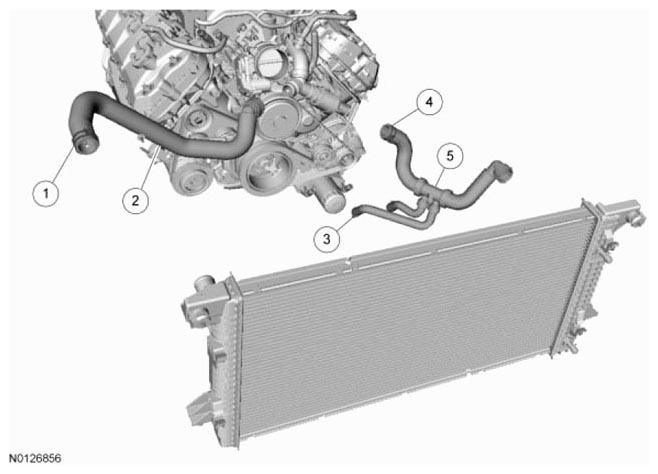

| Item |
Part Number |
Description |
| 1 |
- |
Upper radiator hose clamp (2 required) (part of 8260) |
| 2 |
8260 |
Upper radiator hose |
| 3 |
- |
Oil cooler hose clamp (2 required) (part of 8286) |
| 4 |
- |
Lower radiator hose clamp (part of 8286) |
| 5 |
8286 |
Lower radiator hose |
