Degas Bottle - 3.5L GTDI, 3.7L, 5.0L: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Orange Antifreeze/Coolant Concentrated VC-3-B (US); CVC-3-B2 (Canada) |
WSS-M97B44-D |

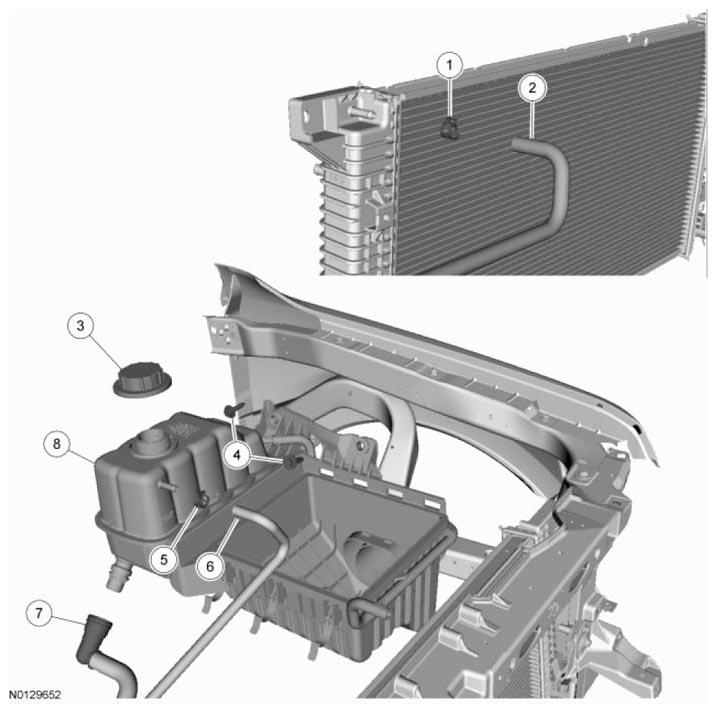

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Radiator-to-degas bottle hose clamp (part of 8075) |
| 2 | 8075 | Radiator-to-degas bottle hose |
| 3 | 8101 | Pressure relief cap |
| 4 | W707108 | Degas bottle/lower air cleaner tray bolts - 17 Nm (150 lb-in) (2 required) |
| 5 | - | Thermostat housing-to-degas bottle hose clamp (part of 8276) |
| 6 | 8276 | Thermostat housing-to-degas bottle hose |
| 7 | 18472 | Heater outlet hose (3.5L Gasoline Turbocharged Direct Injection (GTDI) and 3.7L engines) |
| 7 | 8C350 | Degas bottle-to-heater outlet tube hose (5.0L engines) |
| 8 | 8A080 | Degas bottle/lower air cleaner tray assembly |
