Radiator Hoses - 3.5L Gasoline Turbocharged Direct Injection (GTDI), 3.7L and 5.0L
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

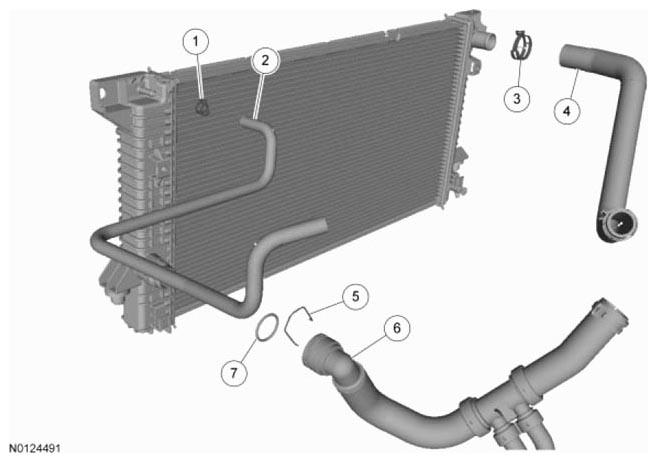

Fig 1: Exploded View Of Radiator Hoses - 3.5L Gasoline Turbocharged Direct Injection (GTDI), 3.7L And 5.0L
| Item | Part Number | Description |
|---|---|---|
| 1 | 15161 | Radiator-to-degas bottle hose clamp |
| 2 | 8W005 | Radiator-to-degas bottle hose |
| 3 | 15161 | Upper radiator hose clamp |
| 4 | 8260 | Upper radiator hose |
| 5 | 8D037 | Lower radiator hose spring clip |
| 6 | 8286 | Lower radiator hose |
| 7 | 8D038 | Lower radiator hose O-ring seal |
