Hood Latch, Transmission Cooler Tubes, Power Steering Cooler Tubes (6.2L) and Cooling Module Bolts
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

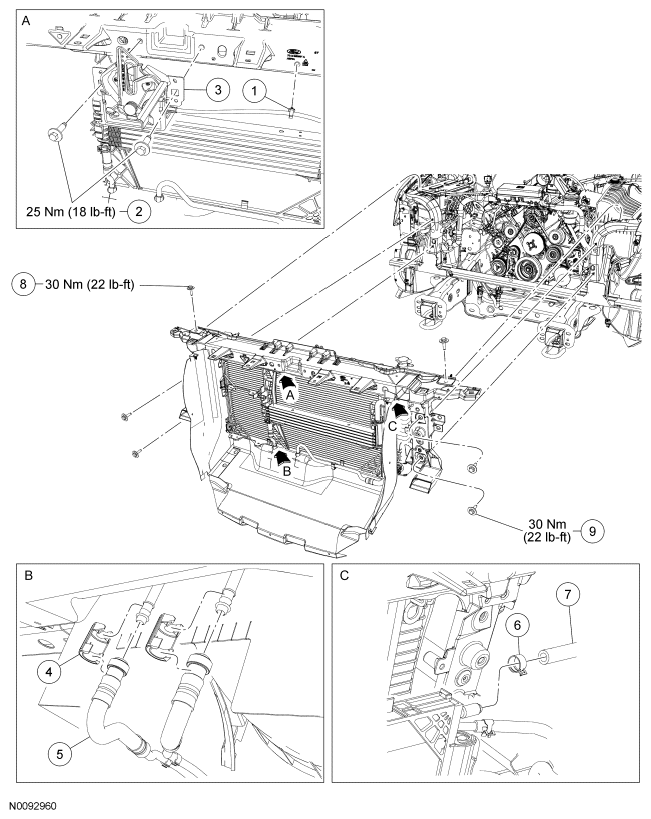

Fig 1: Hood Latch, Transmission Cooler Tubes, Power Steering Cooler Tubes (6.2L) And Cooling Module Bolts With Torque Specifications
| Item | Part Number | Description |
|---|---|---|
| 1 | 16B975 | Hood latch assembly cable retainer |
| 2 | W711848 | Hood latch assembly bolts (2 required) |
| 3 | 6100 | Hood latch assembly |
| 4 | 7J801 | Transmission fluid cooler tube secondary latch (2 required) (6.2L shown in illustration, 3.5L Gasoline Turbocharged Direct Injection (GTDI), 3.7L and 5.0L similar) |
| 5 | 7H420 | Transmission fluid cooler tube (2 required) (6.2L shown in illustration, 3.5L GTDI, 3.7L and 5.0L similar) |
| 6 | - | Power steering fluid cooler hose clamp (2 required) (6.2L only) |
| 7 | 3A713 | Power steering gear-to-fluid cooler return hose (6.2L only) |
| 8 | W701835 | Cooling module upper bolt (2 required) |
| 9 | W701835 | Cooling module front bolt (4 required) |
