Coolant Pump - 5.0L: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Metal Surface Prep ZC-31-A |
- |
| Motorcraft® Orange Antifreeze/Coolant Concentrated VC-3-B (US); CVC-3-B2 (Canada) |
WSS-M97B44-D |

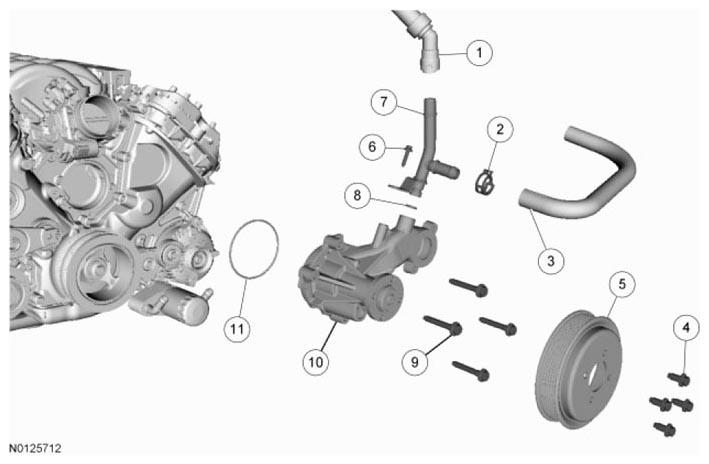

| Item | Part Number | Description |
|---|---|---|
| 1 | 18472 | Heater outlet hose |
| 2 | - | Degas bottle-to-engine hose clamp (part of 8C350) |
| 3 | 8C350 | Degas bottle-to-engine hose |
| 4 | N806282 | Coolant pump pulley bolt (4 required) |
| 5 | 8509 | Coolant pump pulley |
| 6 | W503277 | Heater outlet tube bolt - 10 Nm (89 lb-in) |
| 7 | 18663 | Heater outlet tube |
| 8 | 8565 | Heater outlet tube O-ring seal |
| 9 | W714925 | Coolant pump bolt (4 required) |
| 10 | 8501 | Coolant pump |
| 11 | 8507 | Coolant pump O-ring seal (part of 8501) |
