Coolant Pump - 3.5L GTDI, 3.7L: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Orange Antifreeze/Coolant Concentrated VC-3-B (US); CVC-3-B2 (Canada) |
WSS-M97B44-D |

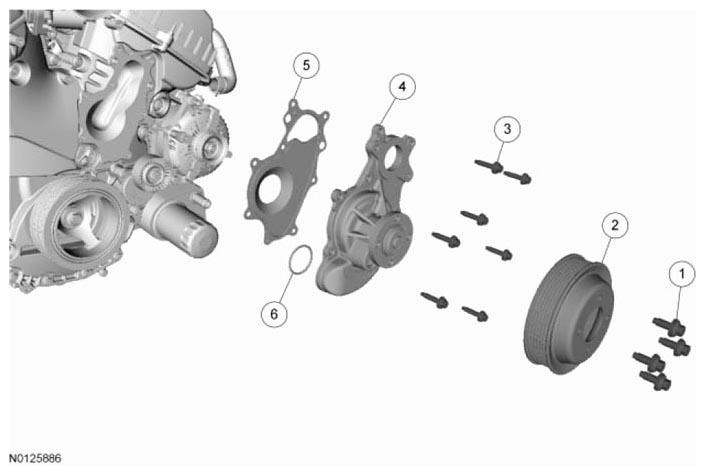

| Item | Part Number | Description |
|---|---|---|
| 1 | W503291 | Coolant pump pulley bolt - 25 Nm (18 lb-ft) (4 required) |
| 2 | 8A528 | Coolant pump pulley |
| 3 | W503278 | Coolant pump bolt (7 required) |
| 4 | 8501 | Coolant pump |
| 5 | 8507 | Coolant pump gasket (part of 8501) |
| 6 | 8565 | Coolant pump O-ring seal (part of 8501) |
