Coolant Expansion Tank - 6.2L: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS

Item Specification
Motorcraft® Orange Antifreeze/Coolant Concentrated
VC-3-B (US); CVC-3-B2 (Canada)
WSS-M97B44-D

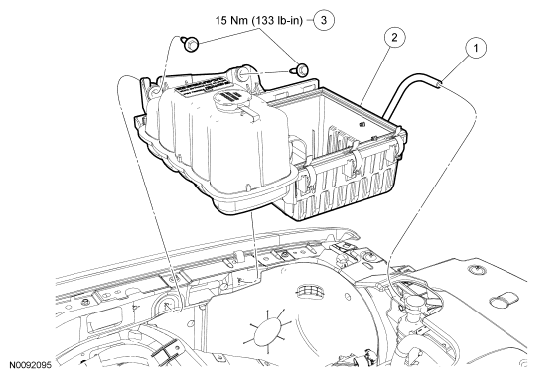

Fig 1: Coolant Expansion Tank Replacement Components (6.2L) With Torque Specifications
G06126948Courtesy of FORD MOTOR CO.
Item Part Number Description
1 8N029 Coolant overflow hose
2 8A080 Coolant expansion tank/lower Air Cleaner (ACL) housing assembly
3 W701835 Coolant expansion tank bolts (2 required)
