Coolant Flow Diagram, 3.5L Gasoline Turbocharged Direct Injection (GTDI)

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE: Black arrows indicate hot, white arrows indicate cold.

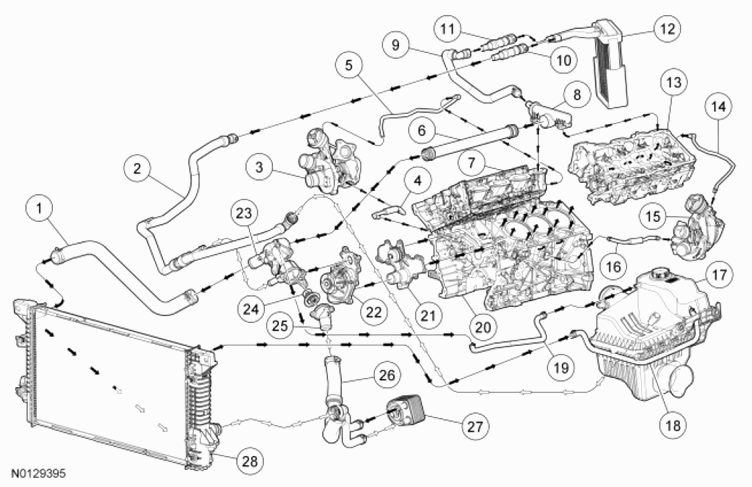

Fig 1: Coolant Flow Diagram - 3.5L Gasoline Turbocharged Direct Injection (GTDI)
G07411217Courtesy of FORD MOTOR CO.
Item Part Number Description
1 8260 Upper radiator hose and clamp assembly
2 18472 Heater outlet hose
3 63K682 RH turbocharger
4 8K153 RH engine-to-turbocharger hose
5 8A520 RH turbocharger-to-engine hose
6 8A505 Coolant inlet pipe
7 6049 RH cylinder head
8 8C368 Coolant crossover manifold assembly
9 18472 Heater inlet hose
10 18472 Heater inlet restrictor
11 18472 Heater outlet restrictor
12 18476 Heater core
13 6049 LH cylinder head
14 8A520 LH turbocharger-to-engine hose
15 6K682 LH turbocharger
16 8K153 LH engine-to-turbocharger hose
17 8A080 Degas bottle
18 8075 Radiator-to-degas bottle hose
19 8276 Thermostat housing-to-degas bottle hose
20 6010 Cylinder block
21 8501 Cylinder block coolant pump hole cover
22 8501 Coolant pump
23 - Thermostat housing (part of 8592)
24 8575 Thermostat (part of 8592)
25 - Coolant inlet connection (part of 8592)
26 8286 Lower radiator hose and clamp assembly
27 6A642 Oil cooler
28 8005 Radiator
