Throttle Body: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

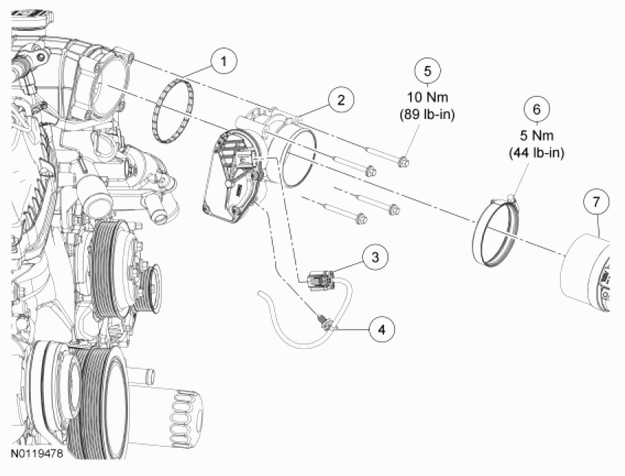

| Item | Part Number | Description |
|---|---|---|
| 1 | 9E936 | Throttle Body (TB) gasket |
| 2 | 9E926 | TB |
| 3 | - | TB electrical connector (part of 12A581) |
| 4 | - | TB wiring harness retainer (part of 12A581) |
| 5 | W713443 | TB bolt (4 required) |
| 6 | - | Charge Air Cooler (CAC) outlet pipe-to-TB clamp (part of 6F073) |
| 7 | 6F073 | CAC outlet pipe |
