3.5L Gasoline Turbocharged Direct Injection (GTDI) Fuel Rails and High Pressure Fuel Tube
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

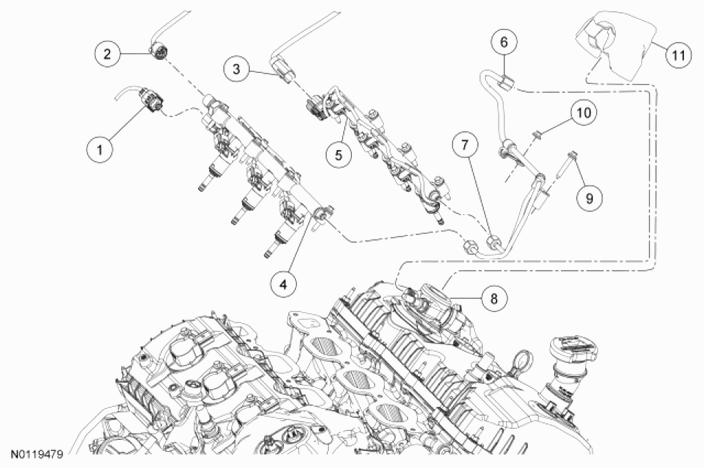

Fig 1: Exploded View Of 3.5L Gasoline Turbocharged Direct Injection Fuel Rails And High Pressure Fuel Tube
| Item | Part Number | Description |
|---|---|---|
| 1 | - | RH fuel charge wire harness electrical connector (part of 12A581) |
| 2 | - | Fuel Rail Pressure (FRP) sensor electrical connector (part of 12A581) |
| 3 | - | LH fuel charge wire harness electrical connector (part of 12A581) |
| 4 | 9D280 | RH fuel rail |
| 5 | 9D280 | LH fuel rail |
| 6 | - | High pressure fuel tube-to-fuel injection pump flare nut (part of 9J323) |
| 7 | - | High pressure fuel tube-to-fuel rail flare nut (part of 9J323) |
| 8 | 9350 | Fuel injection pump |
| 9 | W503282 | High pressure fuel tube bracket bolt |
| 10 | W520100 | High pressure fuel tube bracket nut |
| 11 | 9K540 | Fuel injection pump noise insulator shield |
