Fuel Pump Control Module: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

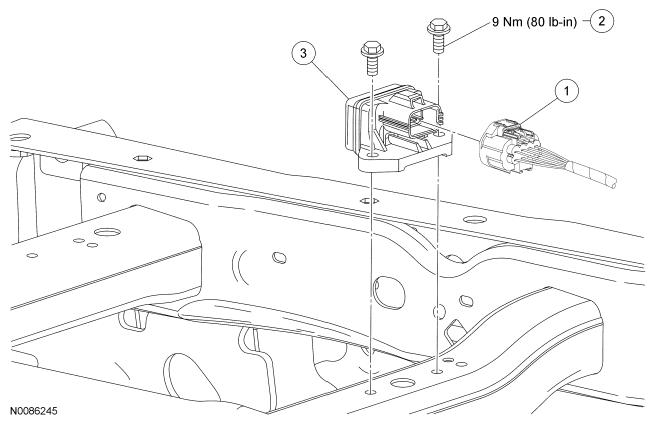

Fig 1: Fuel Pump Control Module, Bolt And Electrical Connector With Torque Specifications
G06455525Courtesy of FORD MOTOR CO.
Item Part Number Description
1 - Fuel Pump Control Module (FPCM) electrical connector (part of 14404)
2 W706027 FPCM bolt (2 required)
3 9345 FPCM
