Fuel Injection Pump: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-30 Super Premium Motor Oil (Canada) XO-5W30-QSP (US); CXO-5W30-LSP12 (Canada) |
WSS-M2C946-A |

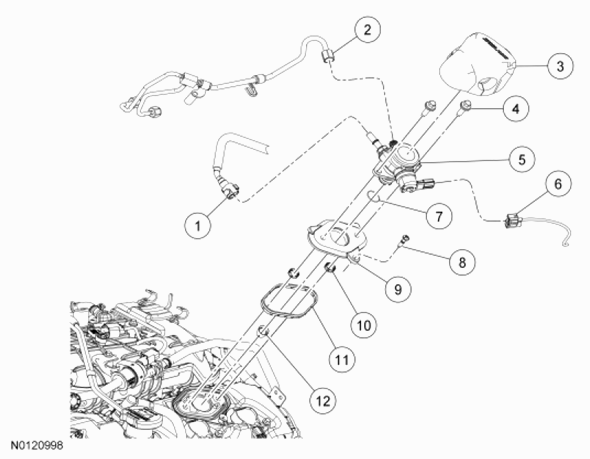

| Item | Part Number | Description |
|---|---|---|
| 1 | - | Fuel jumper tube-to-fuel injection pump quick connect coupling (part of 9J280) |
| 2 | - | High pressure fuel tube-to-fuel injection pump flare nut (part of 9J323) |
| 3 | 9K540 | Fuel injection pump noise insulator shield |
| 4 | W503297 | Fuel injection pump bolt (2 required) |
| 5 | 9350 | Fuel injection pump |
| 6 | - | Fuel injection pump electrical connector (part of 12C581) |
| 7 | 9E583 | Fuel injection pump O-ring seal |
| 8 | 00812 | Fuel injection pump mounting plate bolt |
| 9 | 9178 | Fuel injection pump mounting plate |
| 10 | 9374 | Fuel injection pump mounting plate O-ring seal (2 required) |
| 11 | 9417 | Fuel injection pump mounting plate seal |
| 12 | 9C587 | Fuel injection pump tappet |
