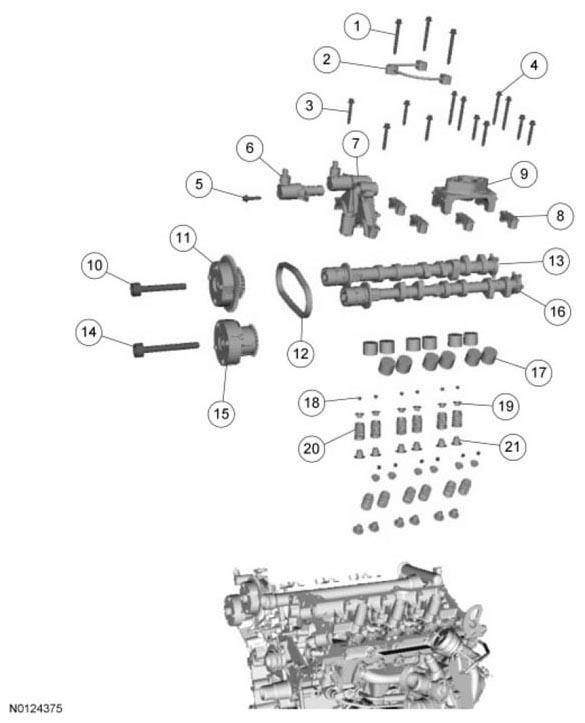

Valve Train Components - Exploded View
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:
LH shown in illustration, RH similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W500305 | Valve train oil tube bolt (3 required) |
| 2 | 6K602 | Valve train oil tube |
| 3 | W710702 | Camshaft cap bolt (8 required) |
| 4 | W500306 | Camshaft cap bolt (4 required) |
| 5 | W500215 | Exhaust camshaft Variable Camshaft Timing (VCT) oil control solenoid bolt |
| 6 | 6M280 | Exhaust camshaft VCT oil control solenoid |
| 7 | 6B280 | Camshaft mega cap |
| 8 | 6A258 | Camshaft cap (4 required) |
| 9 | 6A258 | Camshaft cap |
| 10 | 6279 | Intake camshaft VCT assembly bolt |
| 11 | 6256 | Intake camshaft VCT assembly |
| 12 | 6268 | LH secondary timing chain |
| 13 | 6250 | Intake camshaft |
| 14 | 6279 | Exhaust camshaft VCT assembly bolt |
| 15 | 6C525 | Exhaust camshaft VCT assembly |
| 16 | 6250 | Exhaust camshaft |
| 17 | 6500 | Valve tappet (12 required) |
| 18 | 6518 | Valve spring retainer key (24 required) |
| 19 | 6514 | Valve spring retainer (12 required) |
| 20 | 6513 | Valve spring (12 required) |
| 21 | 6571 | Valve stem seal (12 required) |
- Refer to the procedures and/or exploded views in this information for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
