Oil Cooler: Installation

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

Align the oil cooler to the oil filter adapter and install the oil cooler insert bolt.
- Tighten to 58 Nm (43 lb-ft).

  Fig 1: Locating Oil Cooler Gasket
  Courtesy of FORD MOTOR CO.
Connect the oil cooler coolant hoses.
- Remove the hose clamp pliers.

  Fig 2: Locating Oil Cooler Coolant Hoses Clamp
  Courtesy of FORD MOTOR CO.

NOTE: Do not lubricate the engine oil filter gasket.

Install a new engine oil filter.
- Tighten to 5 Nm (44 lb-in) and then rotate an additional 180 degrees.

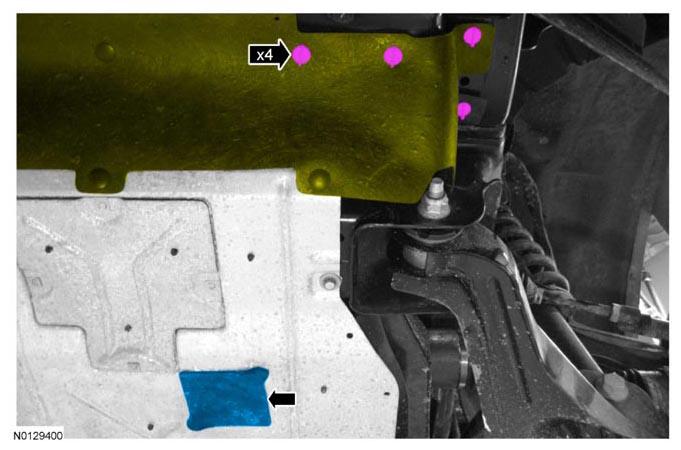

If equipped, position the air deflector and fasten the 4 retainers. Install the skid plate cover.

Fig 3: Locating Air Deflector And Retainers
Courtesy of FORD MOTOR CO.
Install the ACL outlet pipe and the LH ACL-to-turbocharger pipe. For additional information, refer to Intake Air System Components - Exploded View, 3.5L GTDI in INTAKE AIR DISTRIBUTION & FILTERING .
Inspect and adjust the coolant level in the degas bottle.
Inspect and adjust the engine oil level.
