Intake Manifold: Notes

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Click here or refer to the on-line Workshop Information to view this illustration as an interactive exploded view, requires Adobe® Acrobat® 8.0 or higher.

NOTE: Click here or refer to the on-line Workshop Information to learn about using an Interactive Illustration.

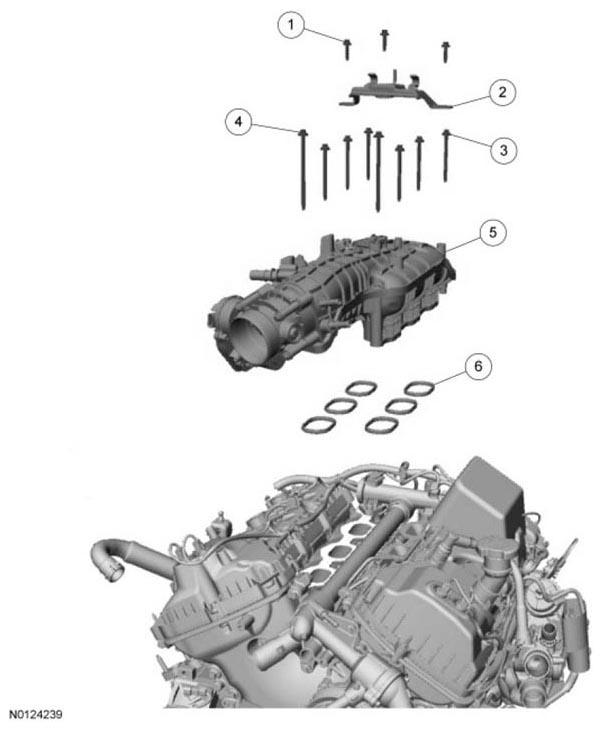

Fig 1: Exploded View Of Intake Manifold

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	W503277	Engine cover bracket bolts (3 required)
2	-	Engine cover bracket (part of 6A949)
3	W714988	Intake manifold bolt (6 required)
4	W715096	Intake manifold bolt (2 required)
5	9424	Intake manifold
6	9439	Intake manifold gasket
