Exhaust Manifold - LH: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item |
Specification |
Motorcraft® Metal Surface Prep
ZC-31-A |
- |
Courtesy of FORD MOTOR CO.

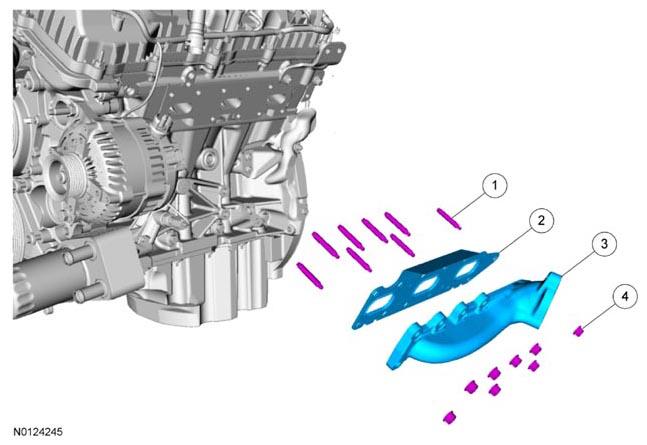

| Item |
Part Number |
Description |
| 1 |
W712244 |
LH exhaust manifold stud (8 required) |
| 2 |
9448 |
LH exhaust manifold gasket |
| 3 |
9431 |
LH exhaust manifold |
| 4 |
W701706 |
LH exhaust manifold nut (8 required) |
