Engine Lubrication Components

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

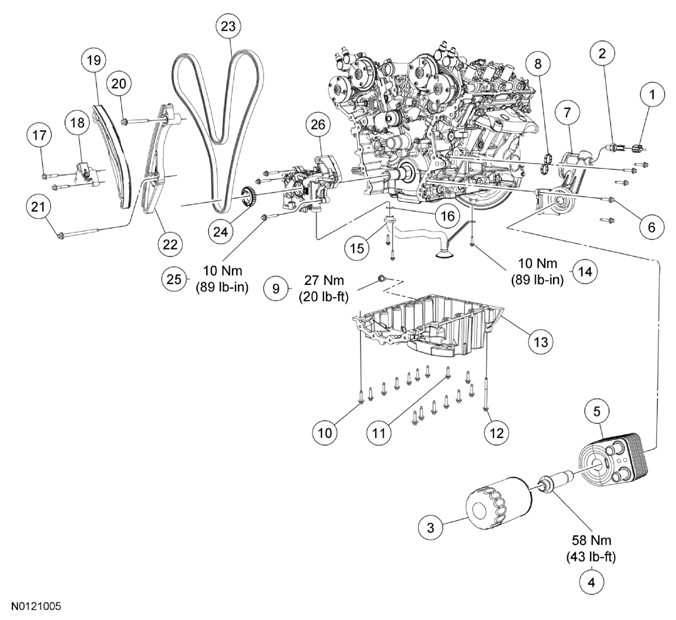

Fig 1: Exploded View Of Engine Lubrication Components With Torque Specifications

Courtesy of FORD MOTOR CO.

Item	Part Number	Description
1	-	Engine Oil Pressure (EOP) switch electrical connector (part of 14A411)
2	9278	EOP switch
3	6731	Engine oil filter
4	6L626	Oil cooler insert bolt
5	6A642	Oil cooler
6	W503278	Oil filter adapter bolt (5 required)
7	6881	Oil filter adapter
8	6840	Oil filter adapter gasket
9	6730	Oil pan drain plug
10	W712943	Oil pan bolt (13 required)
11	W503279	Oil pan bolt (2 required)
12	W708221	Oil pan bolt
14	W503278	Oil pump screen and pickup tube bolt (3 required)
15	6622	Oil pump screen and pickup tube
16	6625	Oil pump screen and pickup tube O-ring seal
17	W500300	Primary timing chain tensioner bolt (2 required)
18	6L266	Primary timing chain tensioner
19	6K255	RH primary timing chain tensioner arm
20	W503284	LH primary timing chain guide bolt
21	W714094	LH primary timing chain guide bolt
22	6B274	LH primary timing chain guide
23	6268	Primary timing chain
24	6306	Crankshaft timing sprocket
25	W503282	Oil pump bolt (3 required)
26	6600	Oil pump

Refer to the procedures and/or exploded views in this information for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
