Cylinder Head - LH: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® Metal Surface Prep ZC-31-A |
- |
| Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-30 Super Premium Motor Oil (Canada) XO-5W30-QSP (US); CXO-5W30-LSP12 (Canada); or equivalent |
WSS-M2C946-A, 5W30; |
| Motorcraft® Silicone Gasket Remover ZC-30 |
- |

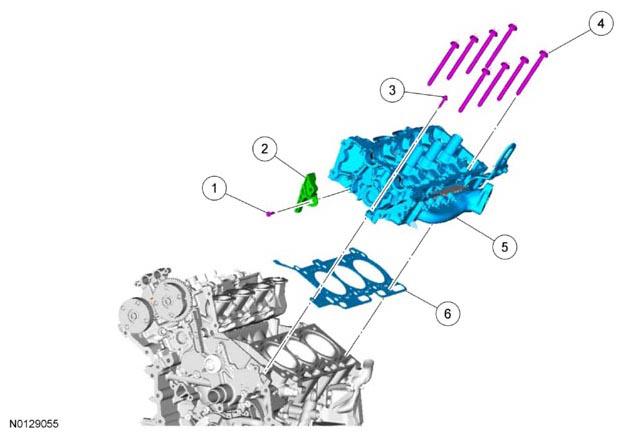

| Item | Part Number | Description |
|---|---|---|
| 1 | W709818 | LH upper primary timing chain guide bolt |
| 2 | 6K297 | LH upper primary timing chain guide |
| 3 | W710702 | Cylinder head M6 bolt |
| 4 | 6065 | Cylinder head bolt (8 required) |
| 5 | 6049 | Cylinder head |
| 6 | 6051 | Cylinder head gasket |
