Crankshaft Front Seal: Installation

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
    NOTE: Apply clean engine oil to the crankshaft front seal bore in the engine front cover.

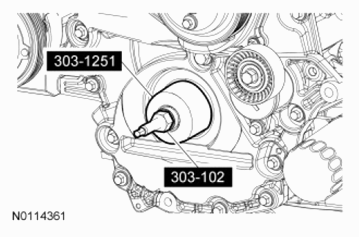

    Fig 1: Installing Crankshaft Front Seal
    G07410341Courtesy of FORD MOTOR CO.
  1. Using the Front Crankshaft Seal Installer and Crankshaft Vibration Damper Installer, install a new crankshaft front seal.
  2. Install the crankshaft pulley. For additional information, refer to CRANKSHAFT PULLEY  .
