Cylinder Head: Notes
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
SPECIAL TOOLS
| Compressor, Valve Spring 303-300 (T87C-6565-A) |
|
| Compressor, Valve Spring 303-350 (T89P-6565-A) |
|
| Compressor, Valve Spring 303-1249 |
|
| Installer, Valve Stem Oil Seal 303-470 (T94P-6510-CH) |
MATERIAL SPECIFICATIONS
| Item | Specification |
|---|---|
| Motorcraft® SAE 5W-30 Premium Synthetic Blend Motor Oil (US); Motorcraft® SAE 5W-30 Super Premium Motor Oil (Canada) XO-5W30-QSP (US); CXO-5W30-LSP12 (Canada); or equivalent |
WSS-M2C946-A, 5W30; |
NOTE:

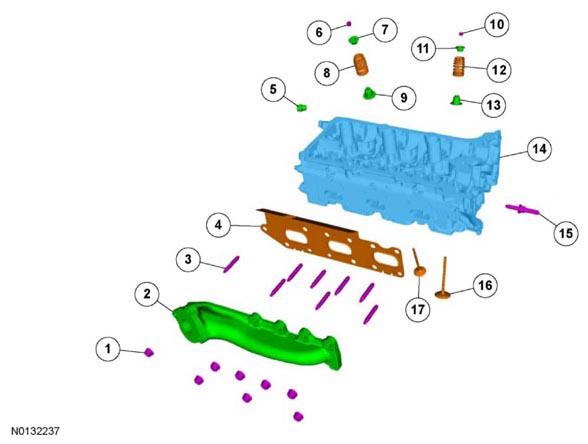

RH cylinder head shown in illustration, LH cylinder head similar.
| Item | Part Number | Description |
|---|---|---|
| 1 | W701706 | RH exhaust manifold nut (8 required) |
| 2 | 9430 | RH exhaust manifold |
| 3 | W712244 | RH exhaust manifold stud (8 required) |
| 4 | 9448 | RH exhaust manifold gasket |
| 5 | 6A968 | Turbocharger coolant return fitting |
| 6 | 6518 | Intake valve spring retainer key (12 required) |
| 7 | 6514 | Intake valve spring retainer (6 required) |
| 8 | 6513 | Intake valve spring (6 required) |
| 9 | 6571 | Intake valve stem seal (6 required) |
| 10 | 6518 | Exhaust valve spring retainer key (12 required) |
| 11 | 6514 | Exhaust valve spring retainer (6 required) |
| 12 | 6513 | Exhaust valve spring (6 required) |
| 13 | 6571 | Exhaust valve stem seal (6 required) |
| 14 | 6049 | RH cylinder head |
| 15 | W714090 | Timing chain tensioner arm pin |
| 16 | 6507 | Intake valve (6 required) |
| 17 | 6505 | Exhaust valve (6 required) |
