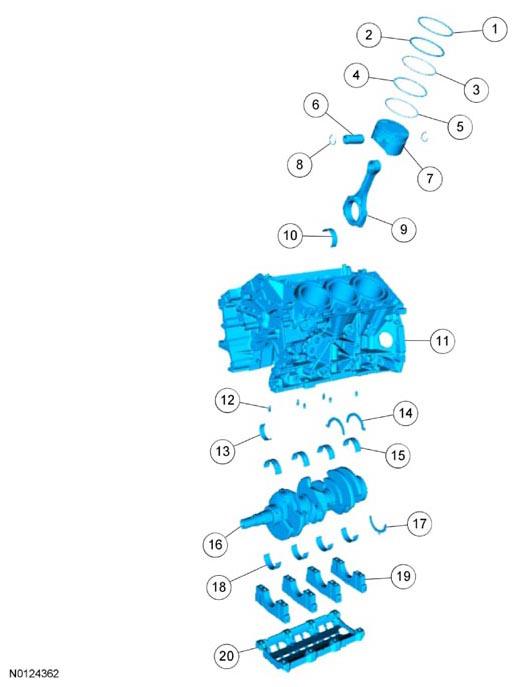

Lower Engine Block (View 2)
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Piston compression upper ring (part of 6148) (6 required) |
| 2 | - | Piston compression lower ring (part of 6148) (6 required) |
| 3 | - | Piston oil control upper segment ring (part of 6148) (6 required) |
| 4 | - | Piston oil control spacer (part of 6148) (6 required) |
| 5 | - | Piston oil control lower segment ring (part of 6148) (6 required) |
| 6 | 6140 | Piston pin (6 required) |
| 7 | 6110 | Piston (6 required) |
| 8 | 6135 | Piston pin retainer (12 required) |
| 9 | 6200 | Connecting rod (6 required) |
| 10 | 6211 | Connecting rod upper bearing (6 required) |
| 11 | 6010 | Cylinder block |
| 12 | 6K858 | Piston oil cool valve (6 required) |
| 13 | 6211 | Connecting rod lower bearing (6 required) |
| 14 | 6A341 | Crankshaft upper thrust washer (2 required) |
| 15 | 6D309 | Cylinder block crankshaft main bearing (4 required) |
| 16 | 6303 | Crankshaft |
| 17 | 6K302 | Crankshaft lower thrust washer |
| 18 | 6D309 | Lower crankshaft main bearing (4 required) |
| 19 | 6325 | Lower crankshaft main bearing cap (4 required) |
| 20 | 6C364 | Main bearing cap support brace |
NOTE:
During engine repair procedures, cleanliness is extremely important. Any foreign material, including any material created while cleaning gasket surfaces that enters the oil passages, coolant passages or the oil pan, may cause engine failure.
NOTE:
Assembly of the engine requires various inspections/measurements of the engine components (engine block, crankshaft, connecting rods, pistons and piston rings). These inspections/measurements will aid in determining if the engine components will require replacement. For additional information, REFER to
ENGINE SYSTEM - GENERAL INFORMATION
.
All vehicles
- Select the crankshaft main bearings for each crankshaft journal.
- Read the code on the crankshaft flange.
- Read the code on the cylinder block face.
- The first letter after the first asterisk makes up the code for main No. 1 and the next letter for main No. 2. The first letter after the second asterisk makes up the code for main No. 3 and the last letter for main No. 4.
- Using the data recorded earlier and the Bearing Select Fit Chart, Standard Bearings, determine the required bearing grade for main bearings 1 and 4.
- Read the first letter of the engine block main bearing code and the first letter of the crankshaft main bearing code.
- Read down the column below the engine block main bearing code letter and across the row next to the crankshaft main bearing code letter, until the 2 intersect. This is the required bearing grade(s) for the No. 1 crankshaft main bearing.
- As an example, if the engine block code letter is "F" and the crankshaft code letter is "P", the correct bearing grade for this main bearing is a "1" for the upper bearing and a "2" for the lower bearing.
- Repeat the above steps using the fourth letter of the block and crankshaft codes to select the No. 4 bearing.
- Using the data recorded earlier and the Bearing Select Fit Chart, Standard Bearings, determine the required bearing grade for main bearings 2 and 3.
- Read the second letter of the engine block main bearing code and the second letter of the crankshaft main bearing code.
- Read down the column below the engine block main bearing code letter and across the row next to the crankshaft main bearing code letter, until the 2 intersect. This is the required bearing grade for the No. 2 crankshaft main bearing.
- As an example, if the engine block code letter is "F" and the crankshaft code letter is "P", the correct bearing grade for this main bearing is "1".
- Repeat the above steps using the third letter of the block and crankshaft codes to select the No. 3.
- Using the original connecting rod cap bolts, install the connecting rod caps and bolts.
- Tighten the bolts in 3 stages.
- Stage 1: Tighten to 23 Nm (17 lb-ft).
- Stage 2: Tighten to 43 Nm (32 lb-ft).
- Stage 3: Tighten an additional 90 degrees.
- Measure the connecting rod large end bore in 2 directions. For additional information, refer to SPECIFICATIONS
.
- Remove the bolts and the rod cap.
- Discard the connecting rod cap bolts.
- Remove the bolts and the rod cap.
- Measure each of the crankshaft connecting rod bearing journal diameters in at least 2 directions. For additional information, refer to SPECIFICATIONS .
- Using the chart, select the correct connecting rod bearings for each crankshaft connecting rod journal.
- Lubricate the upper crankshaft main bearings with clean engine oil and install the 4 crankshaft main bearings in the cylinder block.
- Install the crankshaft onto the upper main bearings.
- Push the crankshaft rearward and install the rear crankshaft upper thrust washer at the back of the No. 4 rear bulkhead.
- Push the crankshaft forward and install the front crankshaft upper thrust washer at the front of the No. 4 rear bulkhead.
- Lubricate the crankshaft lower main bearings with clean engine oil and install them into the main bearing caps. Visually check seating and squareness of the bearings to make sure of proper seating in caps.
- Position the No. 1, No. 2 and No. 3 main bearing caps on the cylinder block and, keeping the caps as square as possible, alternately draw the caps down evenly using the new bolts until the main bearing caps are seated.
- Install the lower crankshaft thrust washer to the back side of the No. 4 rear main bearing cap, with the tab aligned with the cutout in the main bearing cap.
- Position main bearing cap No. 4 on the cylinder block and keeping the cap as square as possible, alternately draw the cap down evenly using the new bolts until the main bearing cap is seated.
- Loosen the No. 4 main bearing cap bolts.
- Tighten the main bearing bolts in 2 stages in the sequence shown in illustration.
- Stage 1: Tighten fasteners 1 through 8 to 60 Nm (44 lb-ft).
- Stage 2: Tighten fasteners 1 through 8 an additional 90 degrees.
- Install the new 8 main bearing cap side bolts. Tighten in 2 stages in the sequence shown in illustration.
- Stage 1: Tighten fasteners 1 through 8 to 45 Nm (33 lb-ft).
- Stage 2: Tighten fasteners 1 through 8 an additional 90 degrees.
- Using the Dial Indicator Gauge with Holding Fixture, measure crankshaft end play.
- Position the crankshaft to the rear of the cylinder block.
- Zero the Dial Indicator Gauge.
- Move the crankshaft to the front of the cylinder block. Note and record the crankshaft end play.
- Prepare the connecting rod and cap.
- Insert the new bolts in the rod cap.
- Insert the upper and lower rod bearings into the rod and cap.
- Before installing the pistons into the cylinder block, verify proper ring gap location.
- Center line of the piston parallel to the wrist pin bore
- Upper compression ring gap location
- Upper oil control segment ring gap location
- Lower oil control segment ring gap location
- Expander ring and lower compression ring gap location
- Using the Piston Ring Compressor, install the piston and connecting rod assemblies.
- Seat the connecting rod on the crankshaft journal.
- Install the connecting rod cap and bolts. Tighten the bolts in 3 stages.
- Stage 1: Tighten to 23 Nm (17 lb-ft).
- Stage 2: Tighten to 43 Nm (32 lb-ft).
- Stage 3: Tighten an additional 90 degrees.
- Repeat the previous 3 steps until all 6 piston, connecting rod and connecting rod cap assemblies are installed.
- Install the main bearing cap support brace and the new bolts. Tighten in 2 stages in the sequence shown in illustration.
- Stage 1: Tighten fasteners to 20 Nm (177 lb-in).
- Stage 2: Tighten fasteners an additional 180 degrees.
- Apply a 3 mm (0.11 in) bead of Motorcraft® High Performance Engine RTV Silicone to the sealing surface of the crankshaft rear seal retainer.
- Install the crankshaft rear seal retainer and the 8 bolts. Tighten in the sequence shown in illustration.
- Tighten to 10 Nm (89 lb-in).
- Install the oil pump and the 3 bolts.
- Tighten to 10 Nm (89 lb-in).

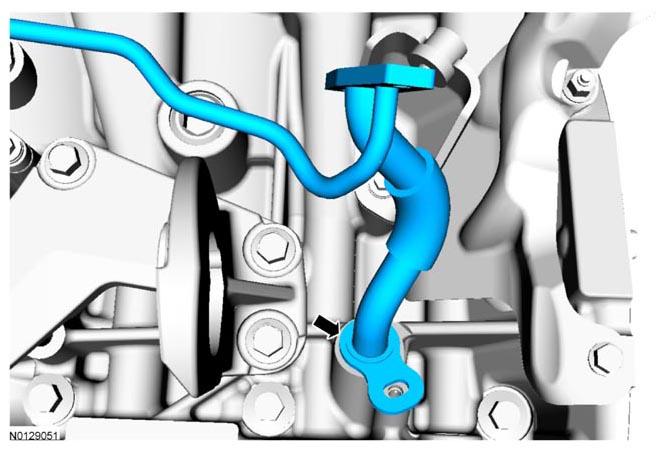

- Using a new O-ring seal, install the oil pump screen and pickup tube and the 3 bolts.
- Tighten to 10 Nm (89 lb-in).
- Apply a 3 mm (0.11 in) bead of Motorcraft® High Performance Engine RTV Silicone on the inside edge of the oil pan to the sealing surface of the oil pan-to-engine block mating surface.
- Apply a 5.5 mm (0.21 in) bead of Motorcraft® High Performance Engine RTV Silicone to the 2 crankshaft seal retainer plate-to-cylinder block joint areas on the sealing surface of the oil pan.
- Install the oil pan and bolts 10, 11, 13 and 14 finger tight.
- Laterally align the oil pan to the block. Make sure the oil pan is flush with the block at these 2 points.
- Tighten bolts 10, 11, 13 and 14 in the sequence shown in illustration.
- Tighten to 3 Nm (27 lb-in).

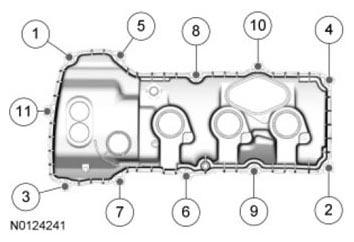

- Install the remaining oil pan bolts and tighten in the sequence shown in illustration.
- Tighten bolts 1-9 and 11-14 to 20 Nm (177 lb-in), then rotate an additional 45 degrees.
- Tighten bolts 15 and 16 to 10 Nm (89 lb-in), then rotate an additional 45 degrees.
- Tighten bolt 10 to 20 Nm (177 lb-in), then rotate an additional 90 degrees.
- Install the Knock Sensor (KS) and the 2 bolts.
- Tighten to 20 Nm (177 lb-in).
- Install a new gasket, the RH cylinder head and 8 new bolts. Tighten in 5 stages in the sequence shown in illustration.
- Stage 1: Tighten to 20 Nm (177 lb-in).
- Stage 2: Tighten to 35 Nm (26 lb-ft).
- Stage 3: Tighten 90 degrees.
- Stage 4: Tighten 90 degrees.
- Stage 5: Tighten 45 degrees.
- Install the new M6 bolt.
- Tighten to 10 Nm (89 lb-in).
- Install a new gasket, the LH cylinder head and 8 new bolts. Tighten in 5 stages in the sequence shown in illustration.
- Stage 1: Tighten to 20 Nm (177 lb-in).
- Stage 2: Tighten to 35 Nm (26 lb-ft).
- Stage 3: Tighten 90 degrees.
- Stage 4: Tighten 90 degrees.
- Stage 5: Tighten 45 degrees.
- Install the new M6 bolt.
- Tighten to 10 Nm (89 lb-in).
- Install the valve tappets.
- Position the crankshaft dowel pin in the 9 o'clock position.
- Position the camshafts onto the RH cylinder head in the neutral position as shown in illustration.

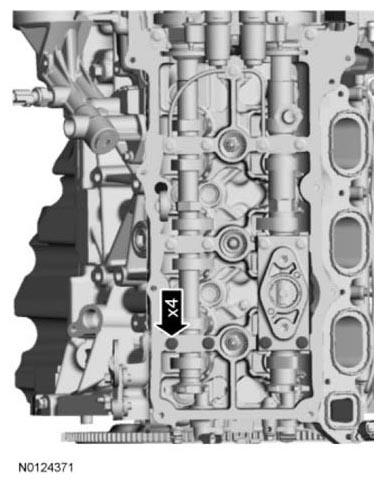

- Position the 4 camshaft seals gaps as shown in illustration.
- Install the 6 camshaft caps, mega cap, valve train oil tube and the 15 bolts in the sequence shown in illustration.
- Tighten to 8 Nm (71 lb-in) then an additional 45 degrees.

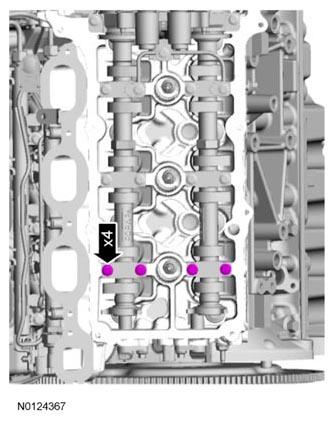

- Loosen the 4 camshaft caps bolts.

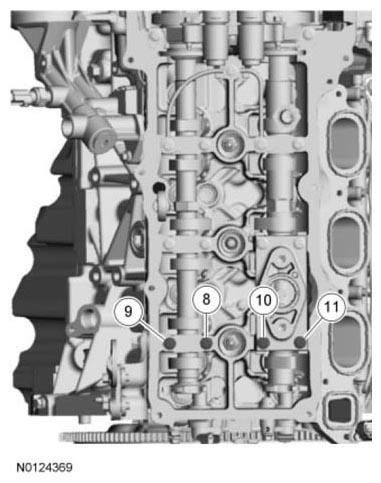

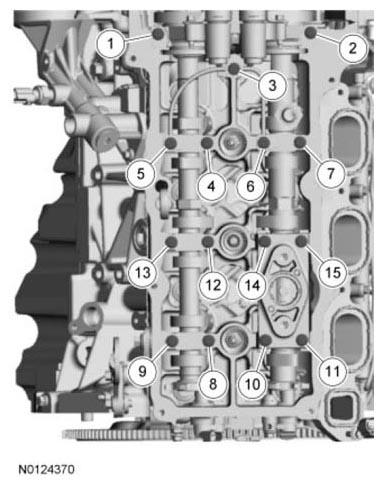

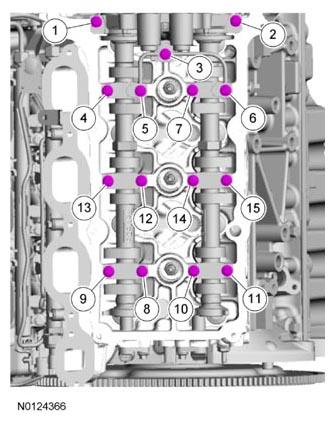

- Tighten the 4 camshaft caps bolts in the sequence shown in illustration.
- Tighten bolts 8, 9, 10 and 11 to 8 Nm (71 lb-in) then an additional 45 degrees.
- Using a feeler gauge, confirm that the valve tappet clearances are within specification. If valve tappet clearances are not within specification, the clearance must be adjusted by installing new valve tappet(s) of the correct size. For additional information, refer to VALVE CLEARANCE CHECK .
- Remove the 3 bolts and the RH valve train oil tube.
- Rotate the RH camshafts to the Top Dead Center (TDC) position as shown in illustration.
- Install the Camshaft Holding Tool onto the flats of the RH camshafts.
- Position the camshafts onto the LH cylinder head in the neutral position as shown in illustration.
- Position the 4 camshaft seals gaps as shown in illustration.
- Install the 6 camshaft caps, mega cap, valve train oil tube and the 15 bolts in the sequence shown in illustration.
- Tighten to 8 Nm (71 lb-in) then an additional 45 degrees.
- Loosen the 4 camshaft caps bolts.

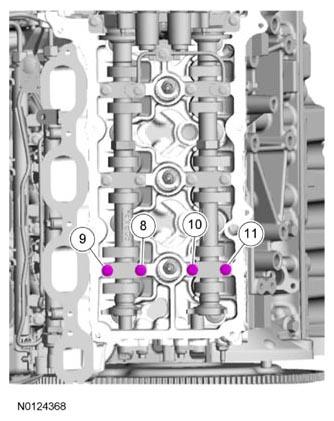

- Tighten the 4 camshaft caps bolts in the sequence shown in illustration.
- Tighten bolts 8, 9, 10 and 11 to 8 Nm (71 lb-in) then an additional 45 degrees.
- Using a feeler gauge, confirm that the valve tappet clearances are within specification. If valve tappet clearances are not within specification, the clearance must be adjusted by installing new valve tappet(s) of the correct size. For additional information, refer to VALVE CLEARANCE CHECK .
- Remove the 3 bolts and the LH valve train oil tube.
- Rotate the LH camshafts to the TDC position as shown in illustration.
- Install the Camshaft Holding Tool onto the flats of the LH camshafts.
- Using a new gasket, install the timing chain gear and the 9 bolts. Tighten in 2 stages in the sequence shown in illustration.
- Stage 1: Tighten to 10 Nm (89 lb-in).
- Stage 2: Tighten an additional 45 degrees.

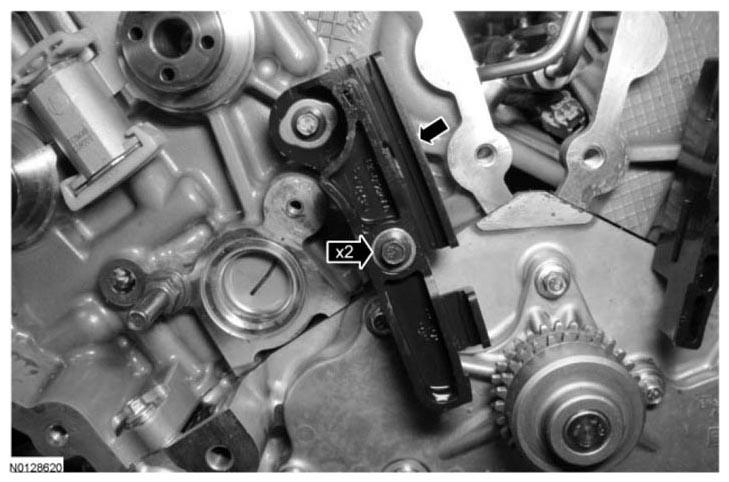

- Install the RH primary timing chain guide and the 2 bolts.
- Tighten to 10 Nm (89 lb-in).
Engines with secondary timing chain tensioner removed
NOTE: The following steps are only for the replacement of the secondary timing chain tensioners. Do not reuse the secondary timing chain tensioners if removed or damage to the engine may occur. - Install the RH secondary timing chain tensioner by pushing it down all the way until a snap is heard and the tensioner is seated all the way down the mega cap bore.
- Install the RH secondary timing chain tensioner shoe.
- Remove and discard the RH secondary timing chain tensioner shipping clip.
- Assemble the RH Variable Camshaft Timing (VCT) assembly, the RH exhaust camshaft sprocket and the RH secondary timing chain.
- Align the colored links with the timing marks.
- Position the 2 RH VCT assemblies and secondary timing chain onto the camshafts by aligning the holes in the VCT assemblies with the dowel pins in the camshafts.
- Install the 2 new RH VCT bolts and tighten in 4 stages.
- Stage 1: Tighten to 40 Nm (30 lb-ft).
- Stage 2: Loosen one full turn.
- Stage 3: Tighten to 25 Nm (18 lb-ft).
- Stage 4: Tighten an additional 180 degrees.
- Activate the RH secondary timing chain tensioner by pressing down on the secondary tensioner shoe until it bottoms out, let go of the tensioner and it will spring up putting tension on the chain.
- Install the RH exhaust VCT oil control solenoid.
- Tighten to 8 Nm (71 lb-in) then an additional 20 degrees.
- Install the LH secondary timing chain tensioner by pushing it down all the way until a snap is heard and the tensioner is seated all the way down the mega cap bore.
- Install the LH secondary timing chain tensioner shoe.
- Remove and discard the LH secondary timing chain tensioner shipping clip.
- Assemble the 2 LH VCT assemblies and the LH secondary timing chain.
- Align the colored links with the timing marks.
- Position the 2 LH VCT assemblies and secondary timing chain onto the camshafts by aligning the holes in the VCT assemblies with the dowel pins in the camshafts.
- Install the 2 new LH VCT bolts and tighten in 4 stages.
- Stage 1: Tighten to 40 Nm (30 lb-ft).
- Stage 2: Loosen one full turn.
- Stage 3: Tighten to 25 Nm (18 lb-ft).
- Stage 4: Tighten an additional 180 degrees.
- Activate the LH secondary timing chain tensioner by pressing down on the secondary tensioner shoe until it bottoms out, let go of the tensioner and it will spring up putting tension on the chain.
- Install the LH exhaust VCT oil control solenoid.
- Tighten to 8 Nm (71 lb-in) then an additional 20 degrees.
Engines with secondary timing chain tensioner not removed

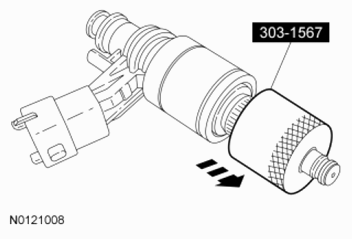

- Compress the RH secondary chain tensioner and install the Secondary Chain Hold Down to retain the tensioner in the collapsed position.
- Assemble the RH Variable Camshaft Timing (VCT) assembly, the RH exhaust camshaft sprocket and the RH secondary timing chain.
- Align the colored links with the timing marks.
- Position the 2 RH VCT assemblies and secondary timing chain onto the camshafts by aligning the holes in the VCT assemblies with the dowel pins in the camshafts.
- Install the 2 new RH VCT bolts and tighten in 4 stages.
- Stage 1: Tighten to 40 Nm (30 lb-ft).
- Stage 2: Loosen one full turn.
- Stage 3: Tighten to 25 Nm (18 lb-ft).
- Stage 4: Tighten an additional 180 degrees.
- Compress the RH secondary timing chain tensioner and remove the Secondary Chain Hold Down.
- Make sure the secondary timing chain is centered on the timing chain tensioner guides.
- Compress the LH secondary chain tensioner and install the Secondary Chain Hold Down to retain the tensioner in the collapsed position.
- Assemble the 2 LH VCT assemblies and the LH secondary timing chain.
- Align the colored links with the timing marks.
- Position the 2 LH VCT assemblies and secondary timing chain onto the camshafts by aligning the holes in the VCT assemblies with the dowel pins in the camshafts.
- Install the 2 new LH VCT bolts and tighten in 4 stages.
- Stage 1: Tighten to 40 Nm (30 lb-ft).
- Stage 2: Loosen one full turn.
- Stage 3: Tighten to 25 Nm (18 lb-ft).
- Stage 4: Tighten an additional 180 degrees.
- Compress the LH secondary timing chain tensioner and remove the Secondary Chain Hold Down.
- Make sure the secondary timing chain is centered on the timing chain tensioner guides.
All engines
- Install the upper LH primary timing chain guide and the bolt.
- Tighten to 10 Nm (89 lb-in).
- Rotate the crankshaft 60 degrees to the Top Dead Center (TDC) position (crankshaft dowel at 11 o'clock).
- Install the crankshaft timing chain sprocket with timing dot mark out.
- Install the primary timing chain with the colored links aligned with the timing marks on the VCT assemblies and the crankshaft sprocket.
- Install the lower LH primary timing chain guide and the 2 bolts.
- Tighten to 10 Nm (89 lb-in).
- Install the primary timing chain tensioner arm.
- Reset the primary timing chain tensioner.
- Release the ratchet detent.
- Using a soft-jawed vise, compress the ratchet plunger.
- Align the hole in the ratchet plunger with the hole in the tensioner housing.
- Install a suitable lockpin.
- Install the primary timing chain tensioner and the 2 bolts.
- Tighten to 10 Nm (89 lb-in).
- Remove the lockpin.
- As a post-check, verify correct alignment of all timing marks.
- There is 48 links in between the RH intake VCT assembly colored link (1) and the LH intake VCT assembly colored link (2).
- There is 35 links in between RH intake VCT assembly colored link (2) and the 2 crankshaft sprocket links (3).
- Install the LH intake VCT oil control solenoid and the bolt.
- Tighten to 8 Nm (71 lb-in) then an additional 20 degrees.
- Install the RH intake VCT oil control solenoid and the bolt.
- Tighten to 8 Nm (71 lb-in) then an additional 20 degrees.

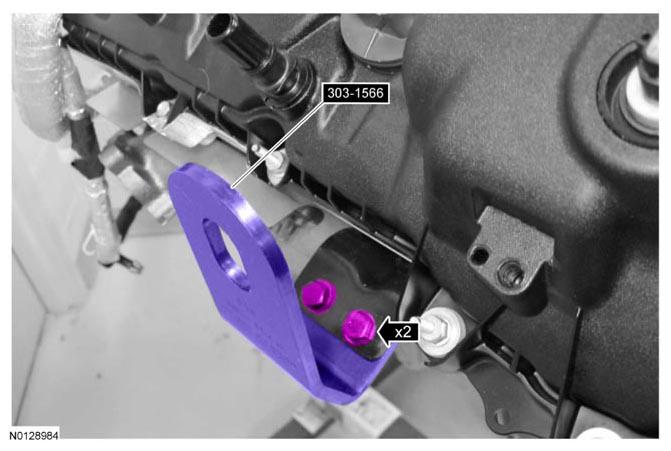

- Remove the RH Camshaft Holding Tool.
- Install the RH valve train oil tube and the 3 bolts and tighten in 2 stages.
- Stage 1: Tighten to 8 Nm (71 lb-in).
- Stage 2: Tighten an additional 45 degrees.
- Remove the LH Camshaft Holding Tool.
- Install the LH valve train oil tube and the 3 bolts and tighten in 2 stages.
- Stage 1: Tighten to 8 Nm (71 lb-in).
- Stage 2: Tighten an additional 45 degrees.
- Using the Spindle Bearing Installer, install the front cover radial seal from the rear side of the front cover.
- Apply a 3.0 mm (0.11 in) bead of Motorcraft® High Performance Engine RTV Silicone on the inside edge of the engine front cover to the engine front cover sealing surfaces including the 2 engine front cover bolt bosses.
- Apply a 5.5 mm (0.21 in) bead of Motorcraft® High Performance Engine RTV Silicone to the oil pan-to-cylinder block joint and the cylinder head-to-cylinder block joint areas of the engine front cover in 5 places as indicated.
- Install the engine front cover and bolts 1, 2, 7, 8, 15, 17, 18, 19, 20 and 21 and tighten in the sequence shown in illustration in 3 stages:
- Stage 1: Tighten bolts 1, 2, 7, 8, 15, 17, 18, 19, 20 and 21 in sequence to 10 Nm (89 lb-in).
- Stage 2: Tighten bolts 1, 2, 7, 8, 15, 17, 18, 19 and 20 in sequence to 20 Nm (177 lb-in) then an additional 45 degrees.
- Stage 3: Tighten bolt 21 to 20 Nm (177 lb-in) then an additional 90 degrees.
- Install the remaining 12 engine front cover bolts 3, 4, 5, 6, 9, 10, 11, 12, 13, 14, 16, 22 and tighten in the sequence shown in illustration in 3 stages:
- Stage 1: Tighten bolts 3, 4, 5, 6, 9, 10, 11, 12, 13, 14, and 16 to 10 Nm (89 lb-in).
- Stage 2: Tighten bolts 3, 4, 5, 6, 9, 10, 11, 12, 13, 14, and 16 to 20 Nm (177 lb-in) then an additional 45 degrees.
- Stage 3: Tighten bolt 22 to 10 Nm (89 lb-in) then an additional 45 degrees.
- Using a new gasket, install the oil filter adapter and the 5 bolts and tighten in sequence shown in illustration.
- Tighten to 10 Nm (89 lb-in) and then an additional 45 degrees.
- Install the new oil cooler and the oil cooler insert bolt.
- Tighten to 58 Nm (43 lb-ft).
- Install the Crankshaft Position (CKP) sensor and install the bolt.
- Tighten to 10 Nm (89 lb-in).
- Install the 2 RH Camshaft Position (CMP) sensors and the bolts. Install the new the Cylinder Head Temperature (CHT) sensor.
- Tighten to 10 Nm (89 lb-in).
- Install the 2 LH CMP sensors and the bolts.
- Tighten to 10 Nm (89 lb-in).

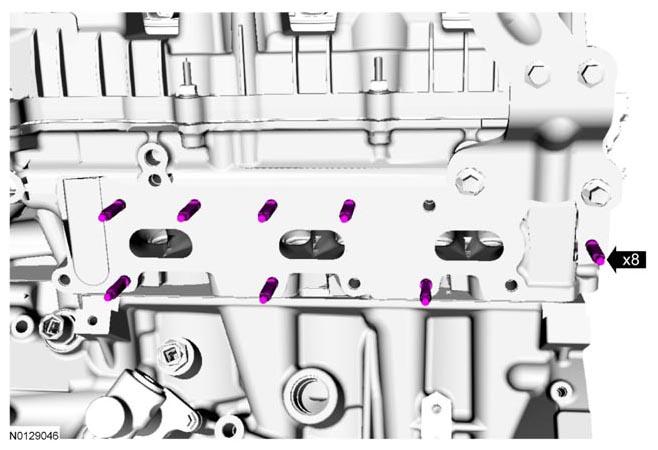

- Install the 8 new RH exhaust manifold studs.
- Tighten to 12 Nm (106 lb-in).

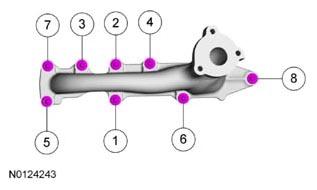

- Using a new gasket, install the RH exhaust manifold and the 8 new nuts. Tighten in 2 stages in the sequence shown in illustration.
- Stage 1: Tighten to 19 Nm (168 lb-in).
- Stage 2: Tighten to 25 Nm (18 lb-ft).
- Using the VCT Spark Plug Tube Seal Installer and Handle, install new spark plug tube seals.
- Using the Differential Bearing Cone Installer and Handle, install new VCT solenoid seal(s).
- Apply an 8 mm (0.31 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-RH cylinder head joints.
- Using a new gasket, install the RH valve cover and tighten the 3 bolts and 8 stud bolts in the sequence shown in illustration.
- Tighten to 10 Nm (89 lb-in).
- Ensure the VCT seals in the valve cover are below the top of the VCT oil control solenoid electrical connector or the VCT seal may leak oil.

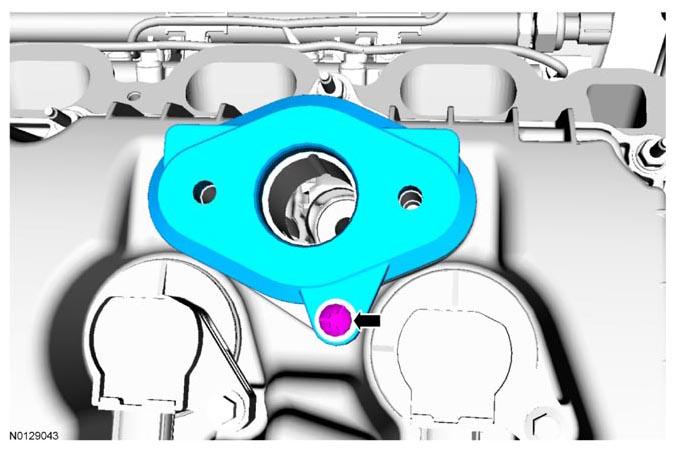

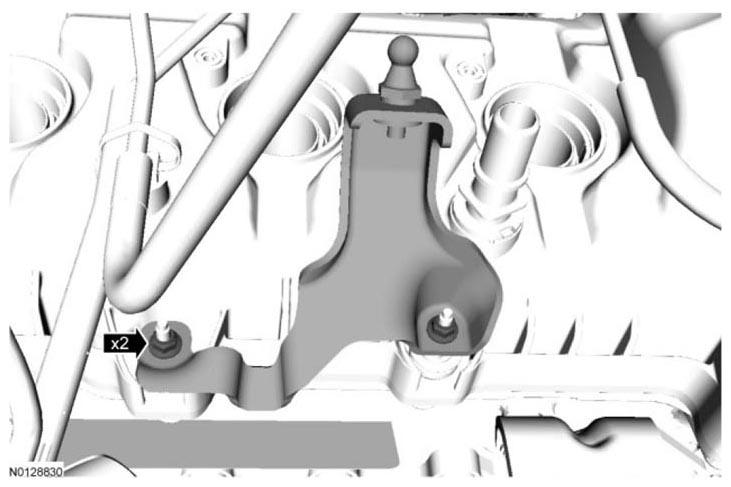

- Install the engine appearance cover bracket and the 2 nuts.
- Tighten to 7 Nm (62 lb-in).
- Install the 3 RH spark plugs.
- Tighten to 15 Nm (133 lb-in).
- Inspect the coil seals for rips, nicks or tears. Remove and discard any damaged coil seals.
- To install, slide the new coil seal onto the coil until it is fully seated at the top of the coil.

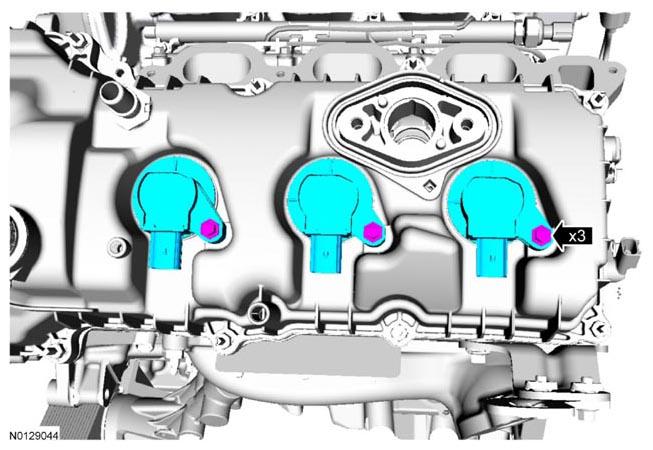

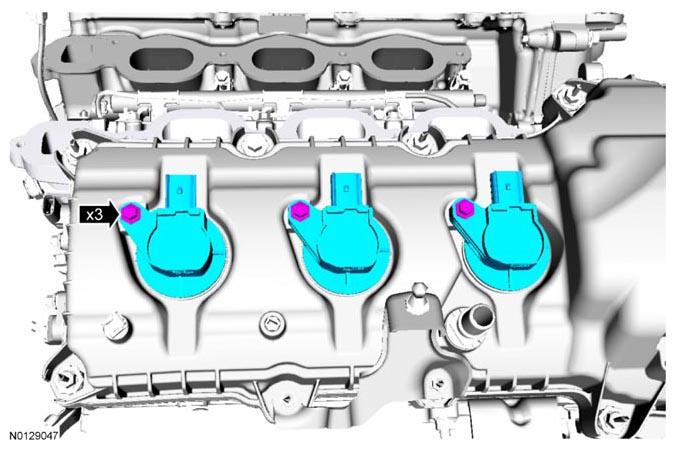

- Install the 3 RH ignition coil-on-plug assemblies and the 3 bolts.
- Tighten to 7 Nm (62 lb-in).

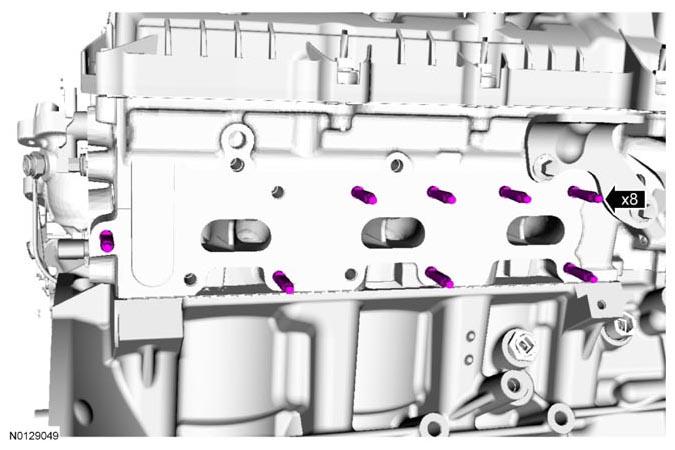

- Install the 8 new LH exhaust manifold studs.
- Tighten to 12 Nm (106 lb-in).
- Using a new gasket, install the LH exhaust manifold and 8 new nuts. Tighten in 2 stages in the sequence shown in illustration.
- Stage 1: Tighten to 19 Nm (168 lb-in).
- Stage 2: Tighten to 25 Nm (18 lb-ft).

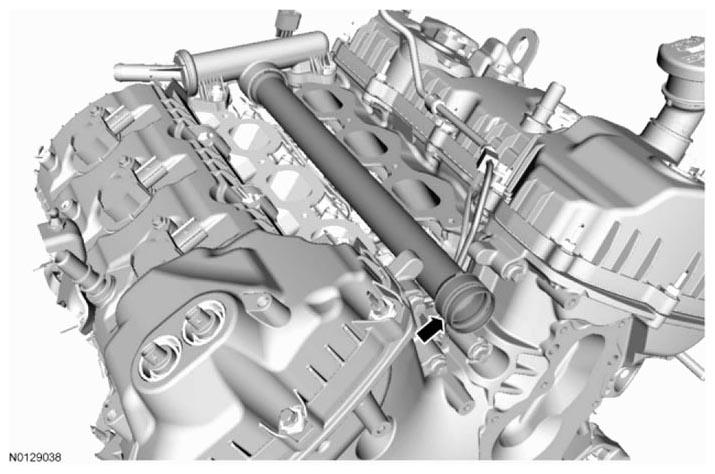

- Using the VCT Spark Plug Tube Seal Installer and Handle, install new spark plug tube seals.
- Using the Differential Bearing Cone Installer and Handle, install new VCT solenoid seal(s).
- Apply an 8 mm (0.31 in) bead of Motorcraft® High Performance Engine RTV Silicone to the engine front cover-to-LH cylinder head joints.

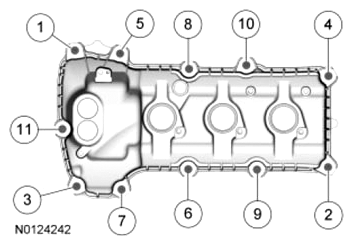

- Using a new gasket, install the LH valve cover and tighten the 11 stud bolts in the sequence shown in illustration.
- Tighten to 10 Nm (89 lb-in).
- Ensure the VCT seals in the valve cover are below the top of the VCT oil control solenoid electrical connector or the VCT seal may leak oil.
- Install the 3 LH spark plugs.
- Tighten to 15 Nm (133 lb-in).
- Inspect the coil seals for rips, nicks or tears. Remove and discard any damaged coil seals.
- To install, slide the new coil seal onto the coil until it is fully seated at the top of the coil.
- Install the 3 LH ignition coil-on-plug assemblies and the 3 bolts.
- Tighten to 7 Nm (62 lb-in).
- Using new gaskets, install the fuel injection pump mounting plate and bolt.
- Tighten finger-tight.
- Pull the Teflon® seal away from the fuel injector with narrow tip pliers.
- Carefully cut and discard the lower fuel injector Teflon® seals.

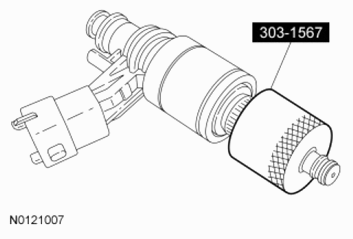

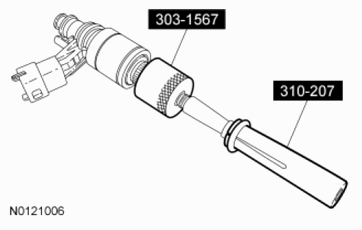

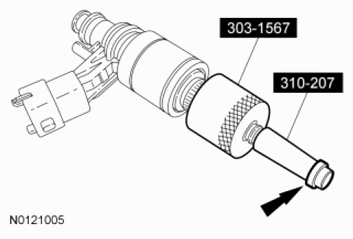

- Place the Teflon® Seal Sizer, knurled side out, over the fuel injector tip until the fuel injector seal recess is exposed.
- Install the new lower Teflon® seals on the narrow end of the Arbor (part of the Fuel Injector Seal Installer), then install the Arbor on the fuel injector tip.
- Using the Pusher Tool (part of the Fuel Injector Seal Installer), slide the Teflon® seals off of the Arbor and into the groove on the fuel injector.
- Slide the Teflon® Seal Sizer off the end of the fuel injector to size the seal.
- Install the 6 new upper fuel injector O-ring seals.
- Install the 6 new fuel injector clips.
- Install the 6 fuel injectors into the fuel rails and connect the fuel injector electrical connector.
- Install the RH fuel rail assembly and the 6 new bolts. Tighten in 3 stages in the sequence shown in illustration.
- Stage 1: Push down on the fuel rail face above the fuel injectors.
- Stage 2: Tighten to 10 Nm (89 lb-in).
- Stage 3: Tighten an additional 45 degrees.
- Install the LH fuel rail assembly and the 6 new bolts. Tighten in 3 stages in the sequence shown in illustration.
- Stage 1: Push down on the fuel rail face above the fuel injectors.
- Stage 2: Tighten to 10 Nm (89 lb-in).
- Stage 3: Tighten an additional 45 degrees.
- Position the new high-pressure fuel tube and hand start the flare nuts in 2 stages.
- Stage 1: Hand tighten the high-pressure fuel tube-to-RH fuel rail flare nut.
- Stage 2: Hand tighten the high-pressure fuel tube-to-LH fuel rail flare nut.
- Loosely install the bolt for the high-pressure fuel tube.

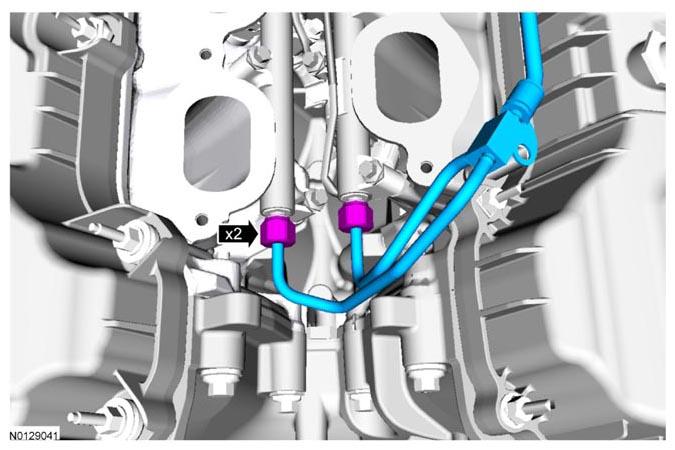

- Connect the high-pressure fuel tube to the fuel rails. Tighten in 6 stages.
- Stage 1: Tighten the high-pressure fuel tube-to-RH fuel rail flare nut to 15 Nm (133 lb-in).
- Stage 2: Tighten an additional 30 degrees.
- Stage 3: Tighten to 32 Nm (24 lb-ft).
- Stage 4: Tighten the high-pressure fuel tube-to-LH fuel rail flare nut to 15 Nm (133 lb-in).
- Stage 5: Tighten an additional 30 degrees.
- Stage 6: Tighten to 32 Nm (24 lb-ft).
- Tighten the bolt for the high-pressure fuel tube.
- Tighten the bolt to 10 Nm (89 lb-in) plus an additional 45 degrees.

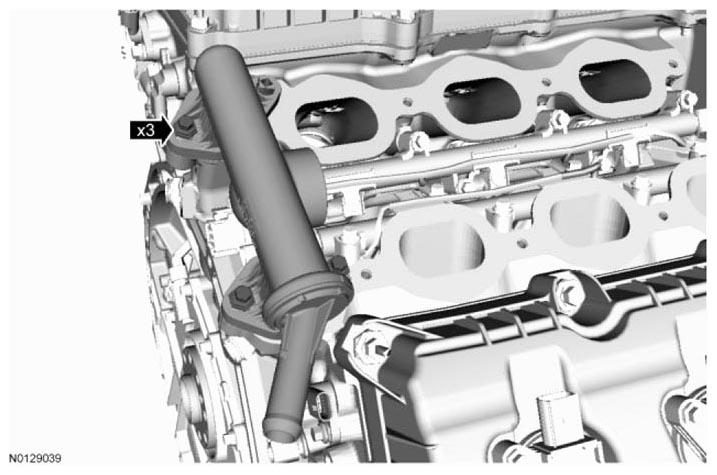

- Using new gaskets, install the coolant crossover manifold assembly and the 3 bolts.
- Tighten to 10 Nm (89 lb-in) plus an additional 45 degrees.
- Using new O-ring seals, install the coolant inlet pipe.
- Using new coolant pump gasket and coolant pump O-ring seal, install the coolant pump and the 7 bolts and tighten in 2 stages in the sequence shown in illustration.
- Stage 1: Tighten to 10 Nm (89 lb-in).
- Stage 2: Tighten an additional 45 degrees.
- Install the coolant pump pulley and the 4 bolts.
- Tighten to 24 Nm (18 lb-ft).
- Install the thermostat housing and the 4 bolts and tighten in 2 stages in the sequence shown in illustration.
- Stage 1: Tighten to 8 Nm (71 lb-in).
- Stage 2: Tighten an additional 45 degrees.

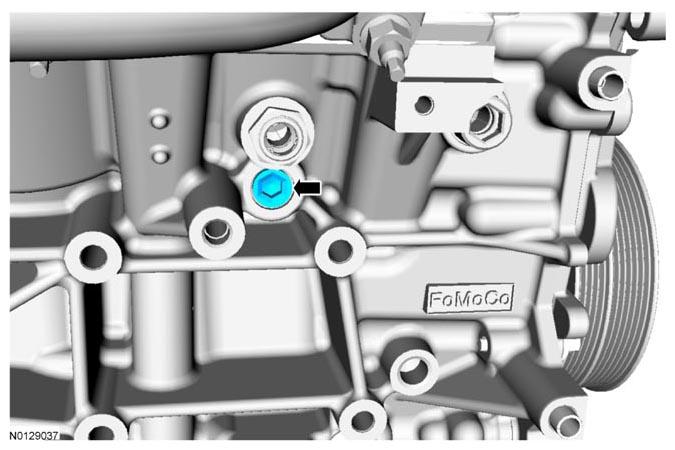

- Install the RH cylinder block drain plug.
- Tighten to 20 Nm (177 lb-in) plus an additional 180 degrees.

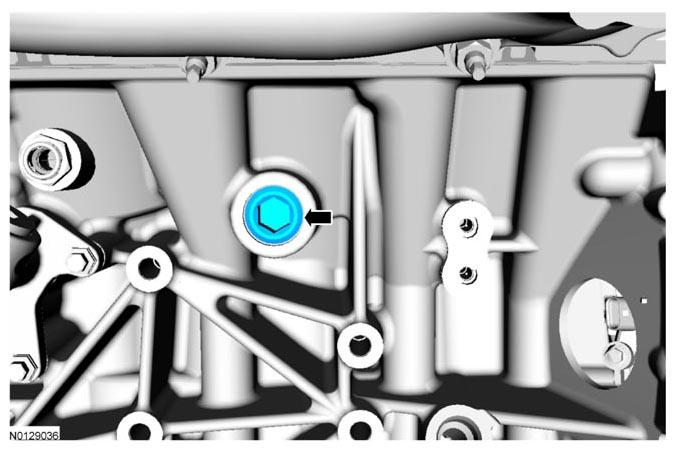

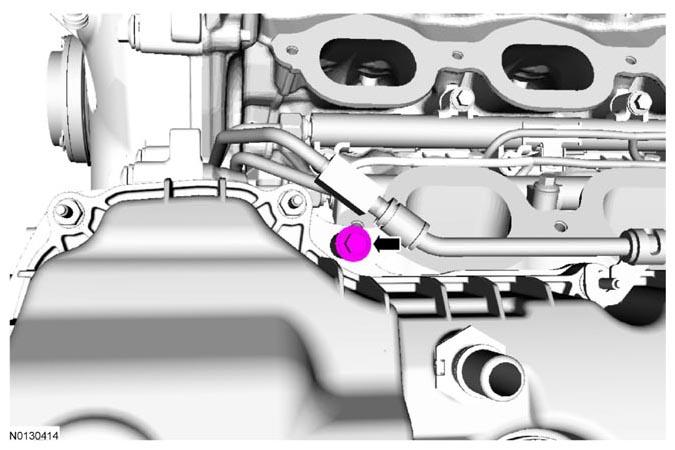

- Install the LH cylinder block drain plug.
- Tighten the cylinder block drain plug to 10 Nm (89 lb-in) plus an additional 720 degrees.
- Install the accessory drive belt tensioner and the 2 bolts.
- Tighten to 25 Nm (18 lb-ft).
- Using the Front Crankshaft Seal Installer and Crankshaft Vibration Damper Installer, install a new crankshaft front seal.
- Lubricate the crankshaft front seal inner lip with clean engine oil.
- Using the Front Cover Oil Seal Installer and Crankshaft Vibration Damper Replacer, install the crankshaft pulley.
- Using the Strap Wrench, install the crankshaft pulley washer and new bolt and tighten in 4 stages.
- Stage 1: Tighten to 120 Nm (89 lb-ft).
- Stage 2: Loosen one full turn.
- Stage 3: Tighten to 50 Nm (37 lb-ft).
- Stage 4: Tighten an additional 90 degrees.
- Position the engine wire harness on the engine. Attach all of the wiring harness retainers to the RH valve cover and stud bolts.

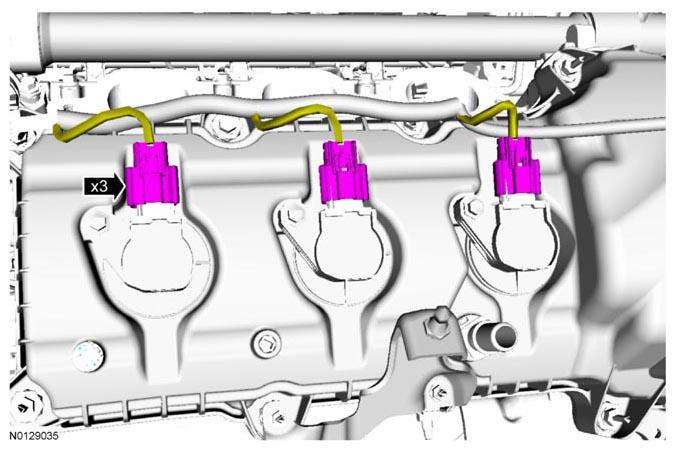

- Connect the 3 RH ignition coil-on-plug electrical connectors.
- Connect the 2 RH VCT solenoid electrical connectors.

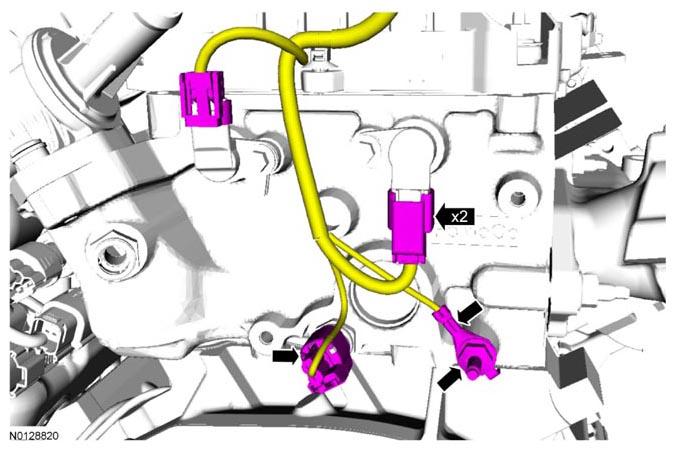

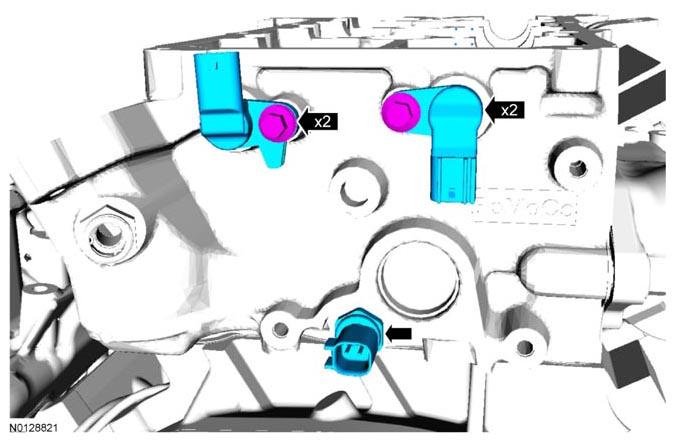

- Connect the 2 RH CMP sensor and the CHT sensor electrical connectors. Install the ground stud bolt.
- Tighten to 10 Nm (89 lb-in).
- Install the ground strap and bolt. Install the CMP heat shield, bolt and the nut.
- Tighten the bolts to 10 Nm (89 lb-in).
- Tighten the nut to 11 Nm (97 lb-in).

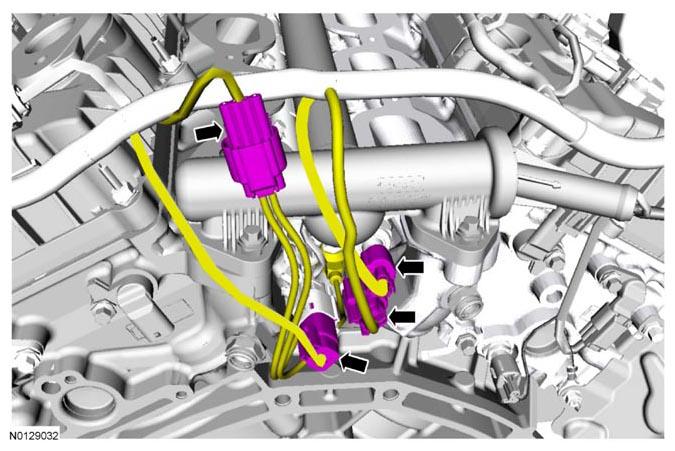

- Connect the 2 fuel charge harness and the Fuel Rail Pressure (FRP) electrical connectors. Connect the KS sensor electrical connector.

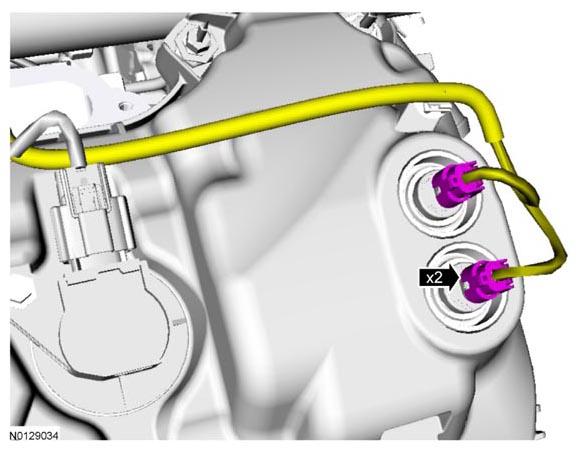

- Connect the 2 LH CMP sensor electrical connectors. Install the ground stud bolt. Install the CKP wire retainer.
- Tighten to 10 Nm (89 lb-in).
- Attach all of the wiring harness retainers to the LH valve cover and stud bolts.
- Connect the CKP sensor electrical connector.
- Install the wiring harness grommet.
- Install the wiring harness retainer stud bolt.
- Tighten to 10 Nm (89 lb-in).

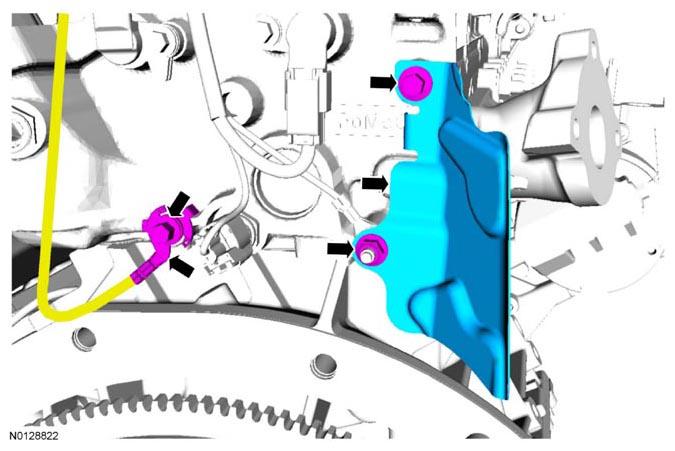

- Install the CKP heat shield, the nut and the bolt.
- Tighten to 10 Nm (89 lb-in).

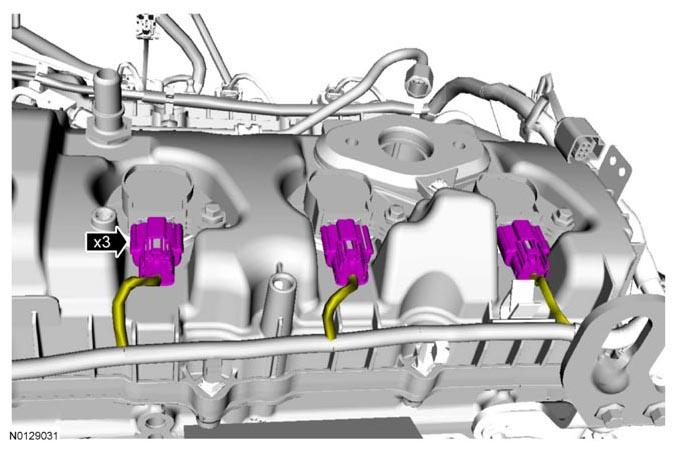

- Connect the 3 LH ignition coil-on-plug electrical connectors.

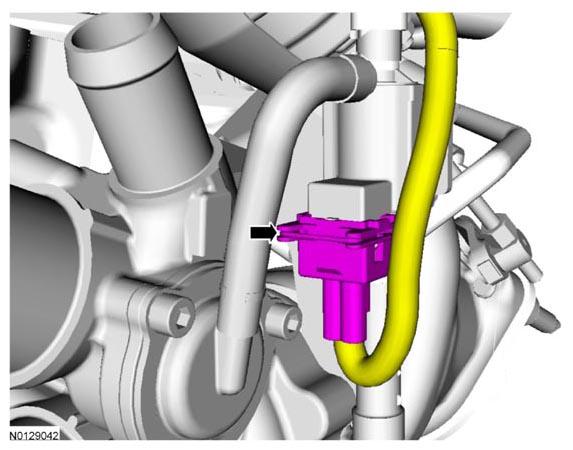

- Connect the Engine Oil Pressure (EOP) switch electrical connector.
- Attach the EOP switch wiring harness retainer to the cylinder head.

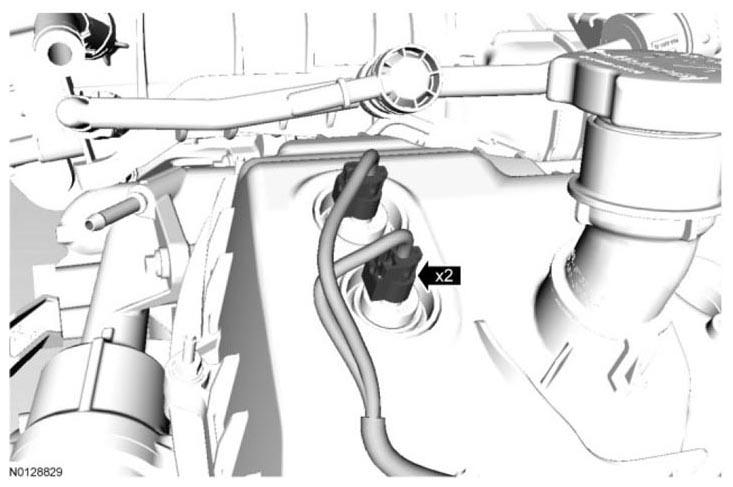

- Connect the 2 LH VCT solenoid electrical connectors.
- Install the engine oil level indicator.
- Install the LH engine support insulator-to-cylinder block bracket and the 4 bolts.
- Tighten to 63 Nm (46 lb-ft).

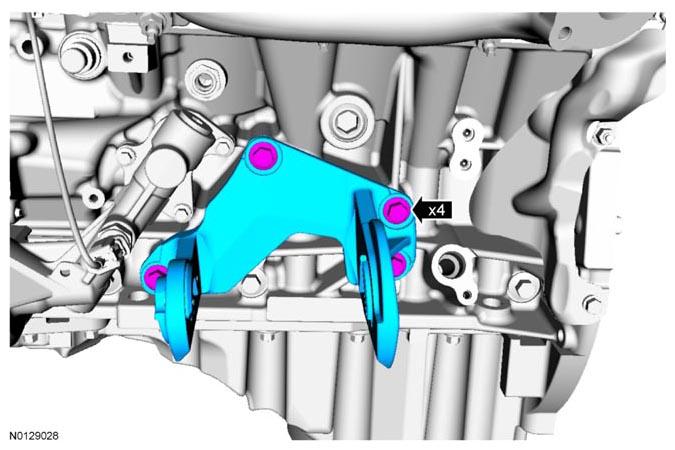

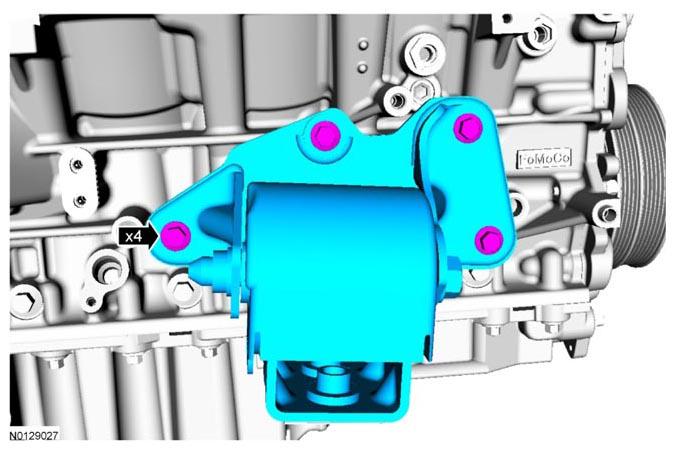

- Install the RH engine support insulator and the 4 bolts.
- Tighten to 63 Nm (46 lb-ft).

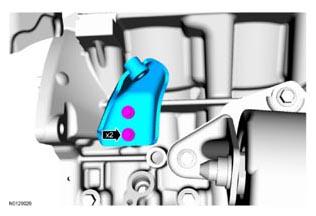

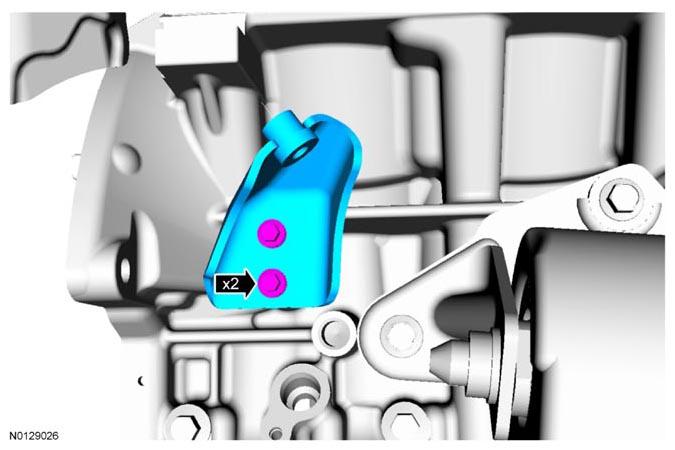

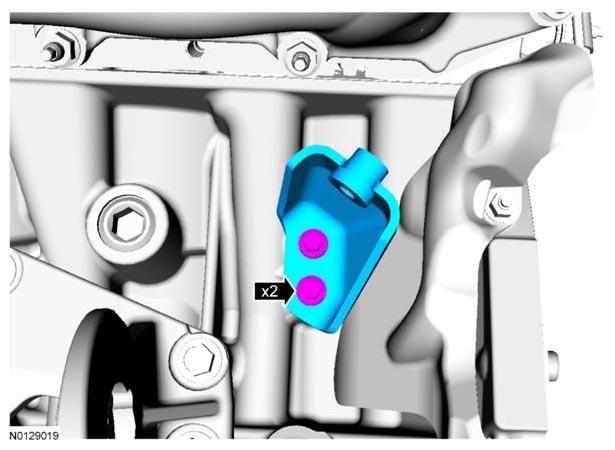

- Install the RH turbocharger mounting bracket and the 2 bolts.
- Tighten finger-tight.

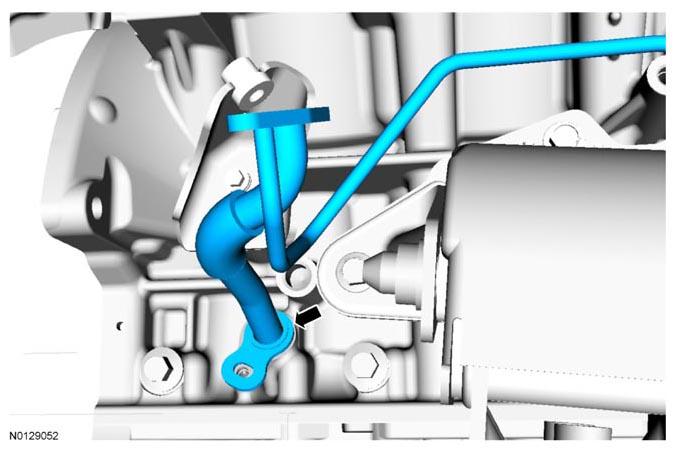

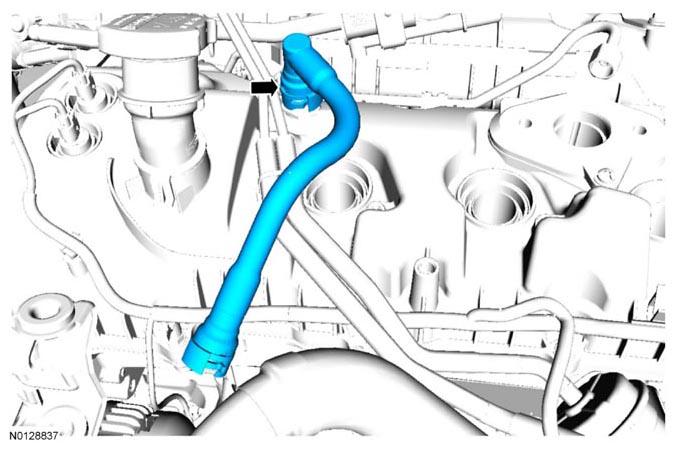

- Using a new O-ring seal, install the RH turbocharger oil return tube.

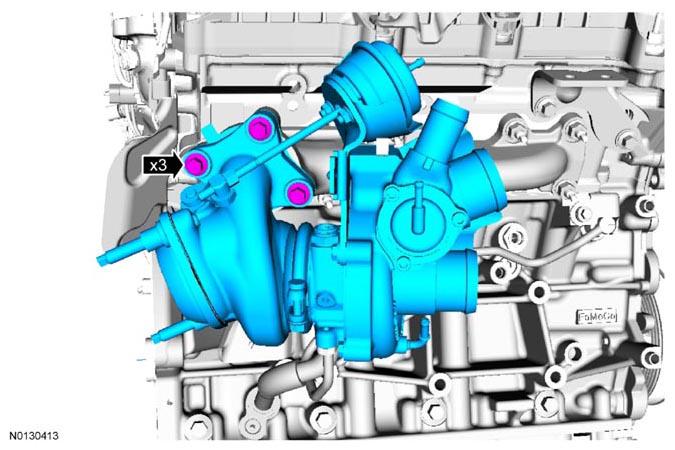

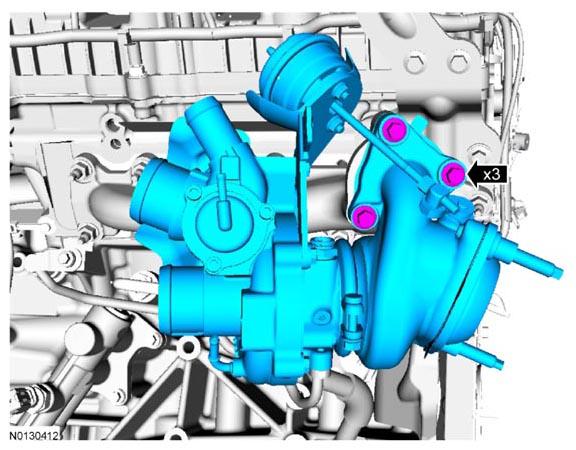

- Using a new turbocharger exhaust manifold gasket, install the RH turbocharger and the 3 bolts.
- Tighten finger-tight.

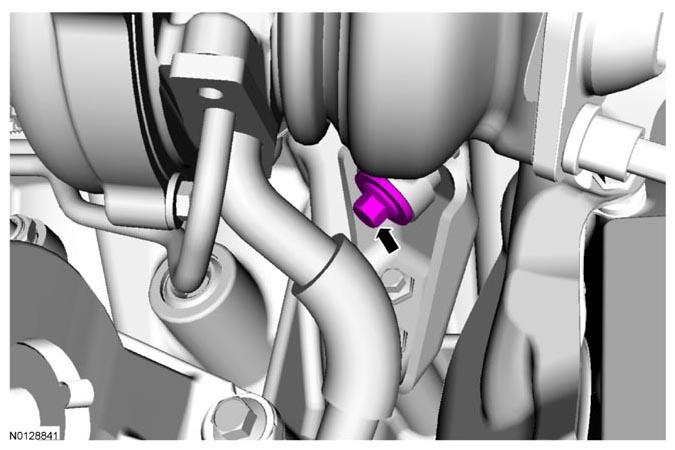

- Install the RH turbocharger mounting bracket bolt.
- Tighten finger-tight.
- Tighten the RH turbocharger mounting bolts.
- Tighten to 32 Nm (24 lb-ft).
- Tighten the RH turbocharger bracket bolt.
- Tighten to 18 Nm (159 lb-in).
- Tighten the 2 turbocharger mounting bracket bolts.
- Tighten to 10 Nm (89 lb-in).

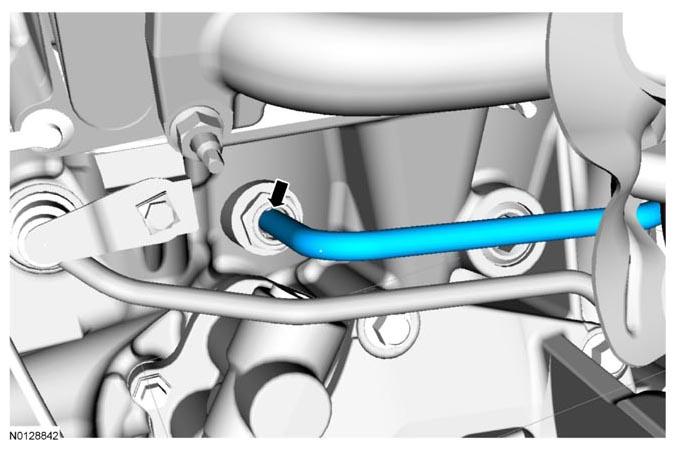

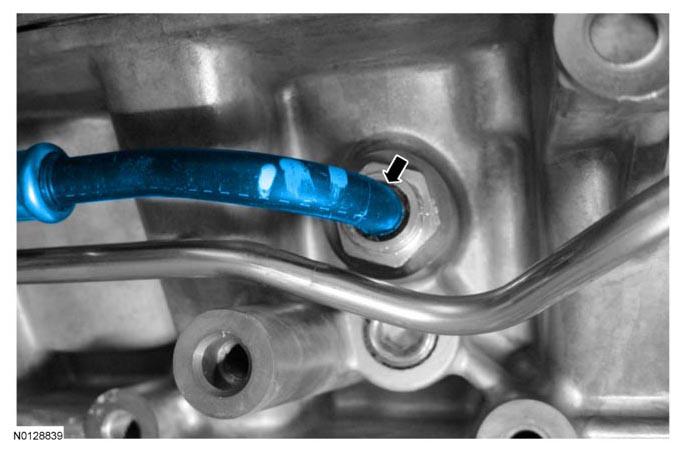

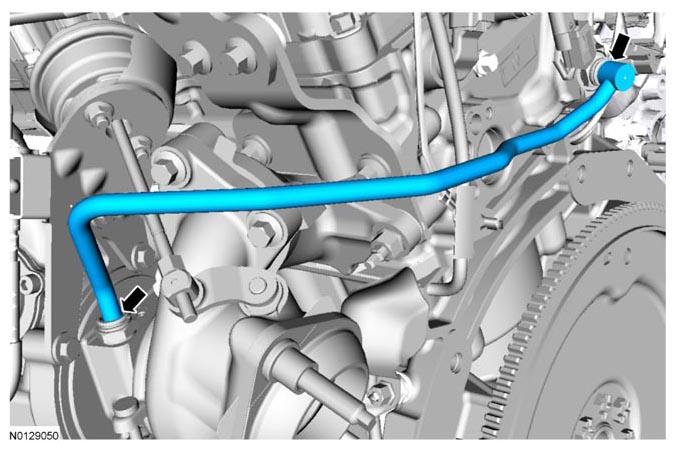

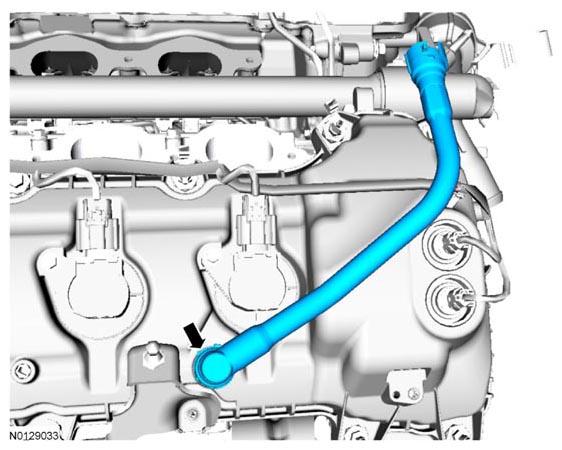

- Install the RH turbocharger coolant return tube into the cylinder block.

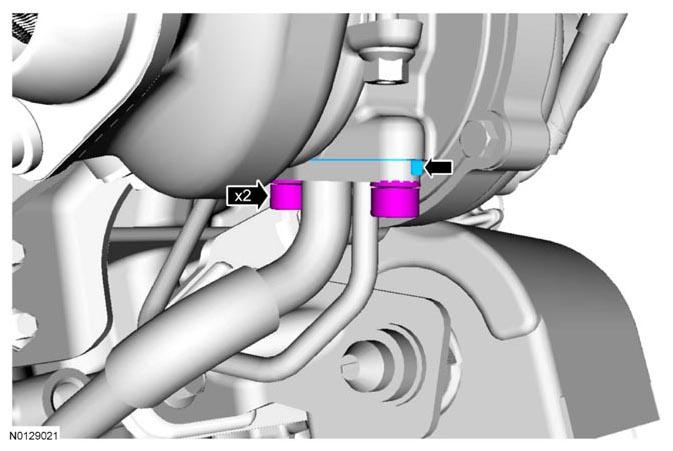

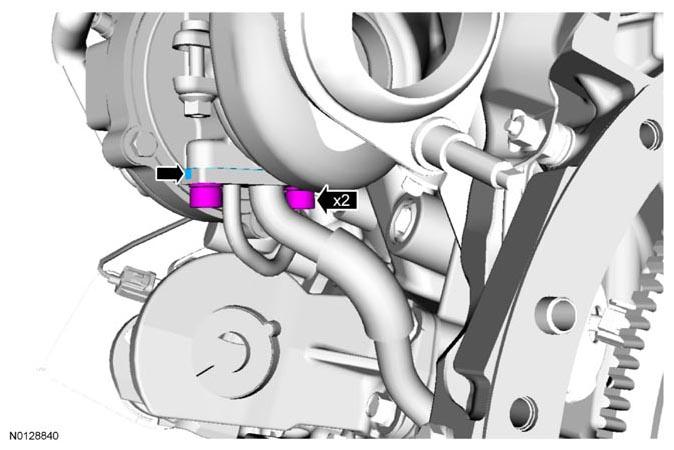

- Using a new turbocharger oil return tube gasket, install the 2 bolts at the turbocharger. Tighten in the following stages.
- Stage 1: Install the bolt for the oil pressure tube side halfway.
- Stage 2: Install the bolt for the oil drain tube side and tighten to 10 Nm (89 lb-in).
- Stage 3: Tighten the bolt for the oil drain tube side an additional 30 degrees.
- Stage 4: Tighten the bolt for the oil pressure tube side to 10 Nm (89 lb-in).
- Stage 5: Tighten the bolt for the oil pressure tube side an additional 30 degrees.

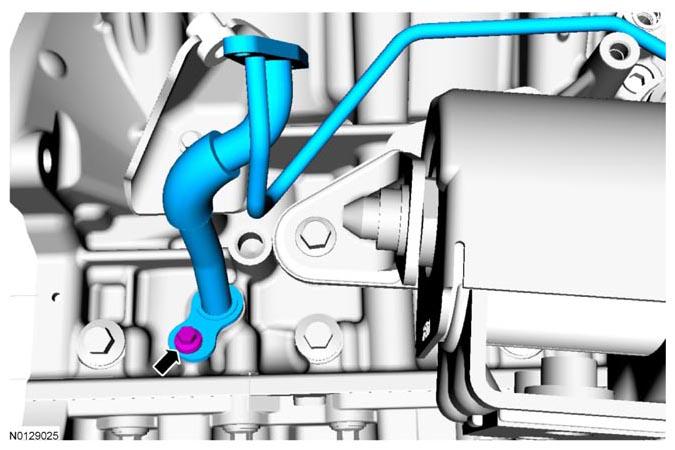

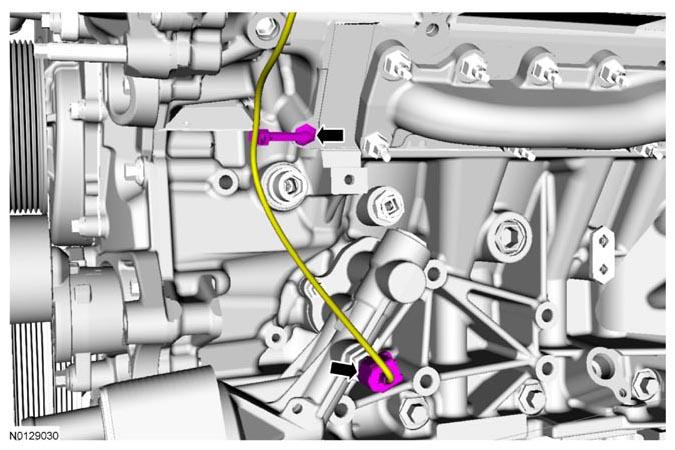

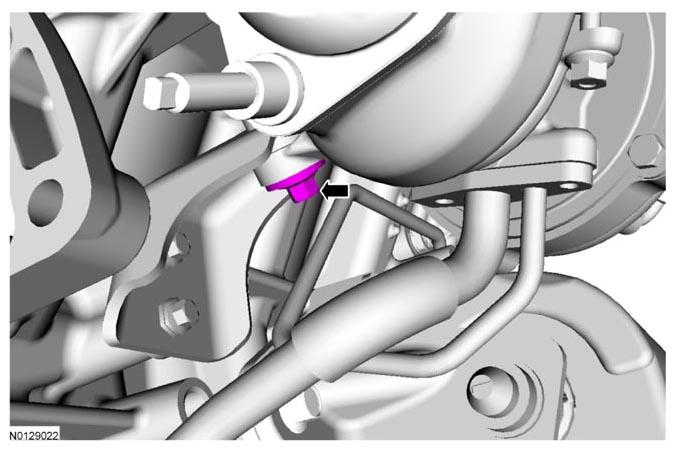

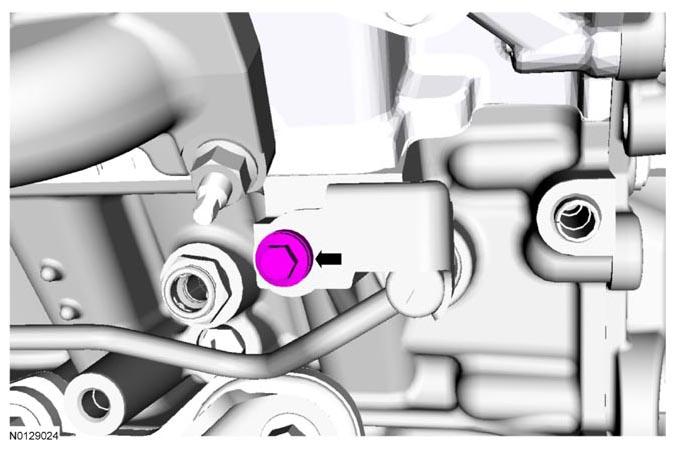

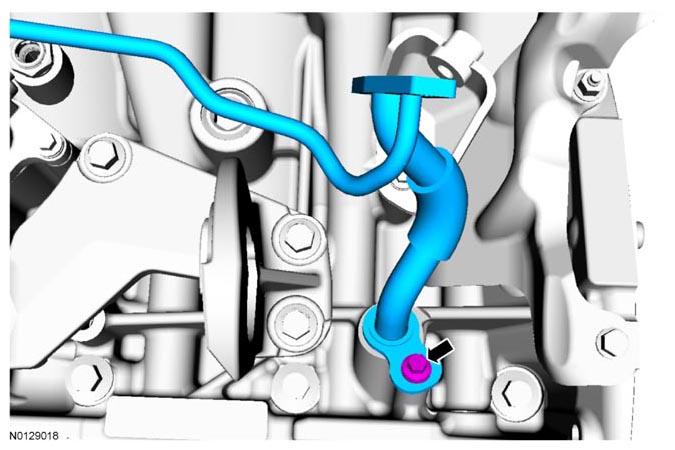

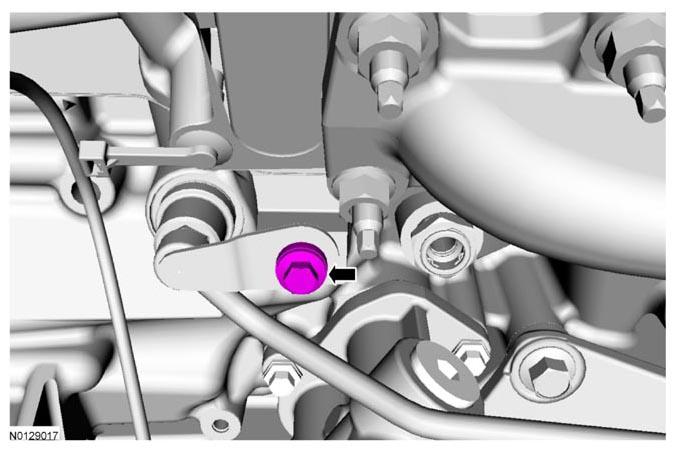

- Install the turbocharger oil return tube bolt at the cylinder block. Tighten in the following stages.
- Stage 1: Tighten to 8 Nm (71 lb-in).
- Stage 2: Tighten an additional 30 degrees.
- Install the oil supply tube bolt. Tighten in the following stages.
- Stage 1: Tighten to 8 Nm (71 lb-in).
- Stage 2: Tighten an additional 30 degrees.

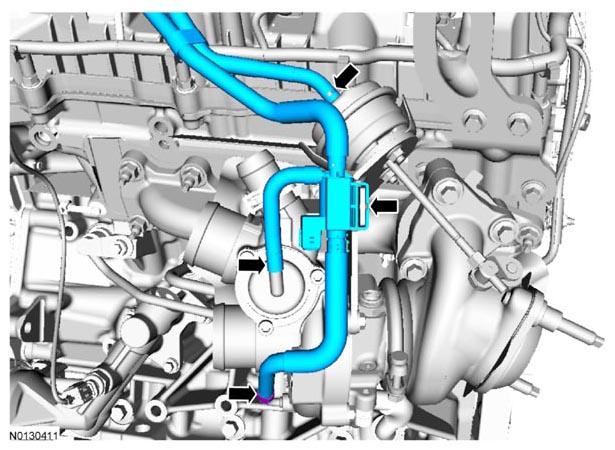

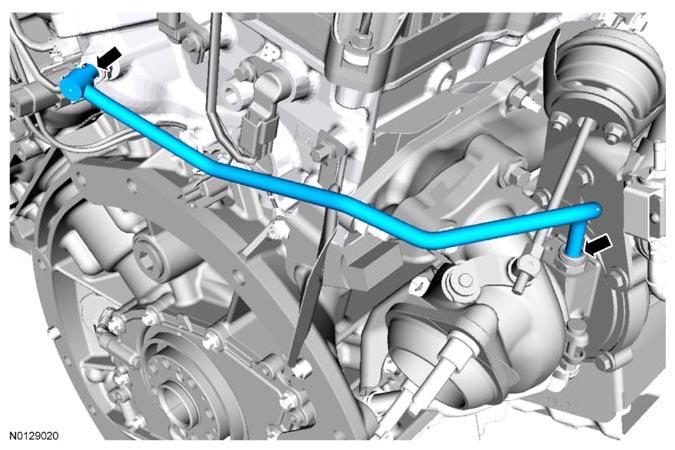

- Install the RH turbocharger coolant supply tube.
- Install the LH turbocharger mounting bracket and the 2 bolts.
- Tighten finger-tight.
- Using a new O-ring seal, install the LH turbocharger oil return tube.
- Using a new turbocharger exhaust manifold gasket, install the LH turbocharger and the 3 bolts.
- Tighten finger-tight.
- Install the LH turbocharger mounting bracket bolt.
- Tighten finger-tight.
- Tighten the LH turbocharger mounting bolts.
- Tighten to 32 Nm (24 lb-ft).
- Tighten the LH turbocharger bracket bolt.
- Tighten to 18 Nm (159 lb-in).
- Tighten the 2 turbocharger mounting bracket bolts.
- Tighten to 10 Nm (89 lb-in).
- Install the LH turbocharger coolant return tube into the cylinder block.
- Using a new turbocharger oil return tube gasket, install the 2 bolts at the turbocharger. Tighten in the following stages.
- Stage 1: Install the bolt for the oil pressure tube side halfway.
- Stage 2: Install the bolt for the oil drain tube side and tighten to 10 Nm (89 lb-in).
- Stage 3: Tighten the bolt for the oil drain tube side an additional 30 degrees.
- Stage 4: Tighten the bolt for the oil pressure tube side to 10 Nm (89 lb-in).
- Stage 5: Tighten the bolt for the oil pressure tube side an additional 30 degrees.
- Install the turbocharger oil return tube bolt at the cylinder block. Tighten in the following stages.
- Stage 1: Tighten to 8 Nm (71 lb-in).
- Stage 2: Tighten an additional 30 degrees.
- Install the oil supply tube bolt. Tighten in the following stages.
- Stage 1: Tighten to 8 Nm (71 lb-in).
- Stage 2: Tighten an additional 30 degrees.
- Install the turbocharger coolant supply tube.

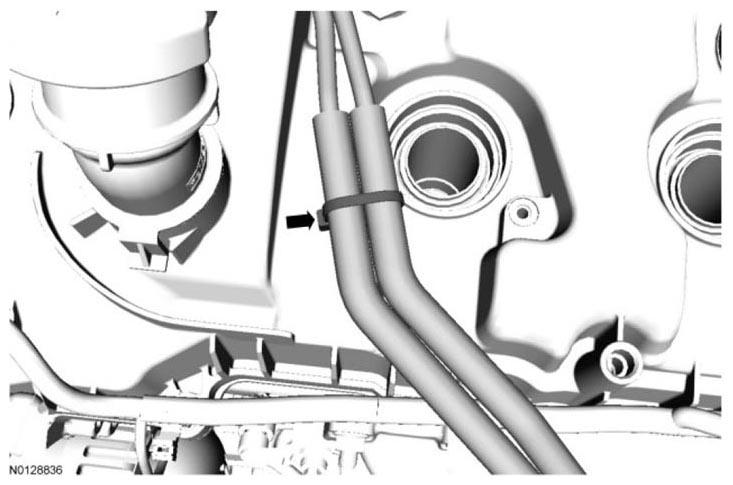

- Position the vacuum hose assembly and install the new tie straps.
- Position the turbocharger bypass valve on the bracket. Connect the wastegate hose and the 2 vacuum hoses.
- Connect the turbocharger pressure regulator solenoid electrical connectors.
- Install the RH PCV tube. For additional information, REFER to FUEL SYSTEM - GENERAL INFORMATION .
- Install the LH crankcase vent tube. For additional information, REFER to FUEL SYSTEM - GENERAL INFORMATION .
- Install the A/C compressor and the 3 bolts.
- Tighten to 25 Nm (18 lb-ft).
- Install the Right Front Lifting Eye and the 2 bolts.
- Tighten to 24 Nm (18 lb-ft).
- Using the Floor Crane and Engine Spreader Bar, remove the engine from the stand.
- Position the Rear Main Seal Installer onto the end of the crankshaft and slide a new crankshaft rear seal onto the tool.
- Using the Rear Main Seal Installer and Handle, install the new crankshaft rear seal.
- Install the crankshaft sensor ring.
- Install the spacer plate.
- Install the flexplate and the 8 bolts and tighten is sequence shown in illustration.
- Tighten to 80 Nm (59 lb-ft).
NOTE:
This procedure is for selecting bearings using a new crankshaft.
NOTE:
This chart is for selecting main bearings 1 and 4 only, the remaining bearings will be selected using a different chart in the next step.
NOTE:
This chart is for selecting main bearings 2 and 3 only.
NOTE:
The rod cap installation must keep the same orientation as marked during disassembly or engine damage may occur.
NOTE:
Before assembling the cylinder block, all sealing surfaces must be free of chips, dirt, paint and foreign material. Also, make sure the coolant and oil passages are clear.
NOTE:
Do not install the upper thrust bearings until the crankshaft is installed.
NOTE:
Lubricate the thrust surfaces of the crankshaft with clean engine oil.
NOTE:
Make sure the side of the thrust washer, with the wide oil grooves, faces the crankshaft thrust surface.
NOTE:
Make sure the side of the thrust washer, with the wide oil grooves, faces the crankshaft thrust surface.
NOTE:
Make sure the side of the thrust washer, with the wide oil grooves, faces the crankshaft thrust surface.
NOTE:
To aid in assembly, apply petroleum jelly to the back of the crankshaft thrust washer.
NOTE:
While tightening the main bearing vertical bolts, push the crankshaft forward and the No. 4 main bearing cap rearward to seat the crankshaft thrust washers.
NOTE:
The rod cap installation must keep the same orientation as marked during disassembly or engine damage may occur.
NOTE:
Be sure not to scratch the cylinder wall or crankshaft journal with the connecting rod. Push the piston down until the connecting rod bearing seats on the crankshaft journal.
NOTE:
The next 3 steps are for all 6 connecting rods, rod caps and pistons. Only 1 connecting rod, rod cap and piston is shown in illustration.
NOTE:
Lubricate the pistons, piston rings, connecting rod bearings and the entire cylinder bores with clean engine oil.
NOTE:
Make sure the piston rings are positioned to specifications for installation. For additional information, refer to
- PISTON
.
NOTE:
If the piston and/or connecting rod are being installed new, the piston rod orientation marks and the arrow on the top of the dome of the piston should be facing toward the front of the engine block.
NOTE:
If the piston and connecting rod are to be reinstalled, they must be installed in the same orientation as disassembled.
NOTE:
The rod cap installation must keep the same orientation as marked during disassembly or engine damage may occur.
NOTE:
After installation of each piston, connecting rod, rod cap and bolts, rotate the crankshaft to verify smooth operation.
NOTE:
Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
NOTE:
The crankshaft rear seal retainer must be installed and the bolts tightened within 4 minutes of sealant application.
Fig 24: Applying Bead Of Motorcraft High Performance Engine RTV Silicone To Sealing Surface Of Crankshaft Rear Seal Retainer
NOTE:
Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
NOTE:
The oil pan and the 4 specified bolts must be installed and the oil pan aligned to the cylinder block within 4 minutes of sealant application. Final tightening of the oil pan bolts must be carried out within 60 minutes of sealant application.
Fig 28: Locating Oil Pan To Sealing Surface Of Oil Pan-To-Engine Block Mating Surface Applying Areas
NOTE:
The oil pan and the 4 specified bolts must be installed within 4 minutes of the start of sealant application.
NOTE:
The valve tappets must be installed in their original positions.
NOTE:
Coat the valve tappets with clean engine oil prior to installation.
NOTE:
LH shown in illustration, RH similar.
NOTE:
The crankshaft must remain in the freewheeling position (crankshaft dowel pin at 9 o'clock) until after the camshafts are installed and the valve clearance is checked/adjusted. Do not turn the crankshaft until instructed to do so. Failure to follow this process will result in severe engine damage.
NOTE:
Coat the camshafts with clean engine oil prior to installation.
NOTE:
The camshaft seal gaps must be at the 12 o'clock position or damage to the engine may occur.
NOTE:
Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.
NOTE:
If any components are installed new, the engine valve clearance must be checked/adjusted or engine damage may occur.
NOTE:
Use a camshaft sprocket bolt to turn the camshafts.
NOTE:
The Camshaft Holding Tool will hold the camshafts in the TDC position.
NOTE:
Coat the camshafts with clean engine oil prior to installation.
NOTE:
The camshaft seal gaps must be at the 12 o'clock position or damage to the engine may occur.
NOTE:
Cylinder head camshaft bearing caps are numbered to verify that they are assembled in their original positions.
NOTE:
If any components are installed new, the engine valve clearance must be checked/adjusted or engine damage may occur.
NOTE:
Use a camshaft sprocket bolt to turn the camshafts.
NOTE:
The Camshaft Holding Tool will hold the camshafts in the TDC position.
NOTE:
Apply clean engine oil to the secondary timing chain tensioner O-ring seals and mega cap bore.
NOTE:
Do not remove the secondary timing chain tensioner shipping clip, until instructed to do so.
NOTE:
It may be necessary to rotate the camshafts slightly, to install the RH secondary timing assembly.
NOTE:
Do not use excessive force when installing the Variable Camshaft Timing (VCT) oil control solenoid. Damage to the mega cap could cause the cylinder head to be inoperable. If difficult to install the VCT oil control solenoid, inspect the bore and VCT oil control solenoid to ensure there are no burrs, sharp edges or contaminants present on the mating surface. Only clean the external surfaces as necessary.
NOTE:
A slight twisting motion will aid in the installation of the VCT oil control solenoid.
NOTE:
Keep the VCT oil control solenoid clean of dirt and debris.
NOTE:
Apply clean engine oil to the secondary timing chain tensioner O-ring seals and mega cap bore.
NOTE:
Do not remove the secondary timing chain tensioner shipping clip, until instructed to do so.
NOTE:
It may be necessary to rotate the camshafts slightly, to install the LH secondary timing assembly.
NOTE:
Do not use excessive force when installing the Variable Camshaft Timing (VCT) oil control solenoid. Damage to the mega cap could cause the cylinder head to be inoperable. If difficult to install the VCT oil control solenoid, inspect the bore and VCT oil control solenoid to ensure there are no burrs, sharp edges or contaminants present on the mating surface. Only clean the external surfaces as necessary.
NOTE:
A slight twisting motion will aid in the installation of the VCT oil control solenoid.
NOTE:
Keep the VCT oil control solenoid clean of dirt and debris.
NOTE:
It may be necessary to rotate the camshafts slightly, to install the RH secondary timing assembly.
NOTE:
It may be necessary to rotate the camshafts slightly, to install the LH secondary timing assembly.
NOTE:
It may be necessary to rotate the camshafts slightly, to align the timing marks.
Fig 90: Locating Primary Timing Chain Colored Links With Timing Marks On VCT Assemblies And Crankshaft Sprocket
NOTE:
It may be necessary to rotate the camshafts slightly to remove slack from the timing chain to install the tensioner.
NOTE:
Do not use excessive force when installing the Variable Camshaft Timing (VCT) oil control solenoid. Damage to the mega cap could cause the cylinder head to be inoperable. If difficult to install the VCT oil control solenoid, inspect the bore and VCT oil control solenoid to ensure there are no burrs, sharp edges or contaminants present on the mating surface. Only clean the external surfaces as necessary.
NOTE:
A slight twisting motion will aid in the installation of the VCT oil control solenoid.
NOTE:
Keep the VCT oil control solenoid clean of dirt and debris.
NOTE:
Do not use excessive force when installing the Variable Camshaft Timing (VCT) oil control solenoid. Damage to the mega cap could cause the cylinder head to be inoperable. If difficult to install the VCT oil control solenoid, inspect the bore and VCT oil control solenoid to ensure there are no burrs, sharp edges or contaminants present on the mating surface. Only clean the external surfaces as necessary.
NOTE:
A slight twisting motion will aid in the installation of the VCT oil control solenoid.
NOTE:
Keep the VCT oil control solenoid clean of dirt and debris.
NOTE:
Use Spindle Bearing Installer 205-149 to install the seal.
NOTE:
Failure to use Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
NOTE:
Do not expose the Motorcraft® High Performance Engine RTV Silicone to engine oil for at least 90 minutes after installing the engine front cover. Failure to follow this procedure can cause engine oil leakage.
NOTE:
The engine front cover and bolts 1, 2, 7, 8, 15, 17, 18, 19, 20 and 21 must be installed within 10 minutes of the initial sealant application. The remainder of the engine front cover bolts and the engine mount bracket bolts must be installed and tightened within 35 minutes of the initial sealant application. If the time limits are exceeded, the sealant must be removed, the sealing area cleaned and sealant reapplied. To clean the sealing area, use silicone gasket remover and metal surface prep. Failure to follow this procedure can cause future oil leakage.
NOTE:
Make sure the 2 locating dowel pins are seated correctly in the cylinder block.
NOTE:
A new oil cooler must be installed or severe damage to the engine can occur.
NOTE:
Lubricate the 2 CMP sensor O-ring seals with clean engine oil.
NOTE:
Lubricate the 2 CMP sensor O-ring seals with clean engine oil.
NOTE:
Failure to tighten the exhaust manifold nuts to specification a second time will cause the exhaust manifold to develop an exhaust leak.
NOTE:
Installation of new seals is only required if damaged seals were removed.
NOTE:
Installation of new seals is only required if damaged seals were removed.
NOTE:
Failure to use the correct Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
NOTE:
If the valve cover is not installed and the fasteners tightened within 4 minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, use silicone gasket remover and metal surface prep. Failure to follow this procedure can cause future oil leakage.
Fig 115: Locating Bead Of Motorcraft® High Performance Engine RTV Silicone Applying Area To Engine Front Cover-To-RH Cylinder Head Joints
NOTE:
Only use hand tools when installing the spark plugs, or damage may occur to the cylinder head or spark plug.
NOTE:
Failure to tighten the exhaust manifold nuts to specification a second time will cause the exhaust manifold to develop an exhaust leak.
NOTE:
Installation of new seals is only required if damaged seals were removed.
NOTE:
Installation of new seals is only required if damaged seals were removed.
NOTE:
Failure to use the correct Motorcraft® High Performance Engine RTV Silicone may cause the engine oil to foam excessively and result in serious engine damage.
NOTE:
If the valve cover is not installed and the fasteners tightened within 4 minutes, the sealant must be removed and the sealing area cleaned. To clean the sealing area, use silicone gasket remover and metal surface prep. Failure to follow this procedure can cause future oil leakage.
Fig 125: Locating Bead Of Motorcraft® High Performance Engine RTV Silicone Applying Area To Engine Front Cover-To-LH Cylinder Head Joints
NOTE:
Only use hand tools when installing the spark plugs, or damage may occur to the cylinder head or spark plug.
NOTE:
Do not attempt to cut the lower Teflon® seal without pulling it away from the fuel injector or damage to the fuel injector may occur.
NOTE:
Be very careful when removing the lower Teflon® seals, not to scratch, nick or gouge the fuel injectors.
NOTE:
Do not lubricate the new lower Teflon® fuel injector seals.
NOTE:
Once the Teflon® seal is installed on the Arbor, it should immediately be installed onto the fuel injector to avoid excessive expansion of the seal.
NOTE:
Make sure the Teflon® seal is fully seated in the groove on the fuel injector before sizing the seal.
NOTE:
Use fuel injector O-ring seals that are made of special fuel-resistant material. The use of ordinary O-ring seals may cause the fuel system to leak. Do not reuse the O-rings.
NOTE:
Apply clean engine oil to the 6 new upper fuel injector O-ring seals.
NOTE:
Inspect the fuel injector support disk and replace if necessary.
NOTE:
RH shown in illustration, LH similar.
NOTE:
The anti rotation device on the fuel injector has to slip into the groove of the fuel rail cup.
NOTE:
It is very important to visually inspect the routing of the fuel charge wire harness to make sure that they will not be pinched or damaged between the fuel rail and the cylinder head during installation.
NOTE:
Tighten the bolts using a method that draws the fuel rail evenly to the cylinder head, preventing a rocking motion.
NOTE:
It is very important to visually inspect the routing of the fuel charge wire harness to make sure that they will not be pinched or damaged between the fuel rail and the cylinder head during installation.
NOTE:
Tighten the bolts using a method that draws the fuel rail evenly to the cylinder head, preventing a rocking motion.
NOTE:
Apply clean engine oil to the threads of the 2 high-pressure fuel tube flare nuts.
NOTE:
Lubricate the O-ring seal with clean engine coolant.
NOTE:
Lubricate the O-ring seal with clean engine coolant.
NOTE:
Lubricate the coolant inlet tube O-ring seal with clean engine coolant.
NOTE:
Apply thread sealant with PTFE to the threads prior to installing the cylinder block drain plug.
NOTE:
Apply thread sealant with PTFE to the threads prior to installing the cylinder block drain plug.
NOTE:
Apply clean engine oil to the crankshaft front seal bore in the engine front cover.
NOTE:
Lubricate the outside diameter sealing surfaces with clean engine oil.
NOTE:
Lubricate the cylinder block bore with clean engine oil.
NOTE:
Apply clean engine oil to the O-ring seal.
NOTE:
Make sure the turbocharger oil supply tube in positioned in the cylinder block during the installation of the turbocharger oil return tube.
NOTE:
Install the RH turbocharger coolant return tube in the turbocharger prior to installation.
NOTE:
Lubricate the cylinder block bore with clean engine oil.
NOTE:
Apply clean engine oil to the O-ring seal.
NOTE:
Make sure the turbocharger oil supply tube in positioned in the cylinder block during the installation of the turbocharger oil return tube.
NOTE:
Install the LH turbocharger coolant return tube in the turbocharger prior to installation.
NOTE:
LH shown in illustration, RH similar.
NOTE:
LH shown in illustration, RH similar.
NOTE:
LH shown in illustration, RH similar.
NOTE:
Heat insulating wrap removed for clarity.
NOTE:
Lubricate the seal lips and bore with clean engine oil prior to installation.
