Engine Upper
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

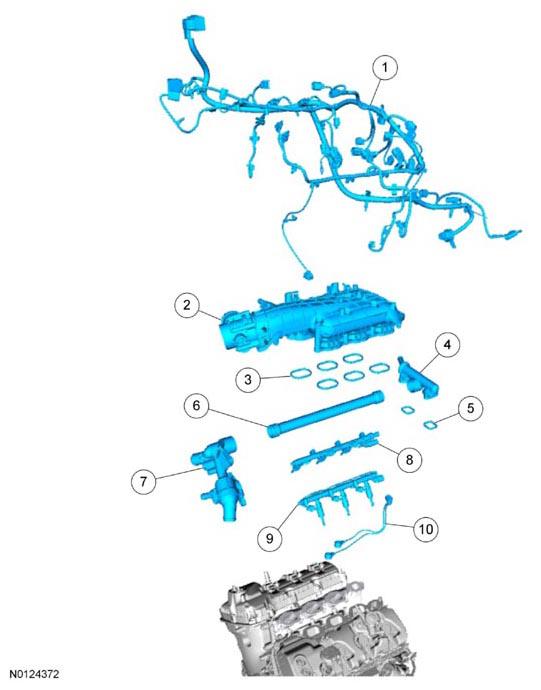

| Item | Part Number | Description |
|---|---|---|
| 1 | 12A581 | Engine control harness |
| 2 | 9424 | Intake manifold |
| 3 | 9439 | Intake manifold gasket |
| 4 | 8C368 | Coolant crossover |
| 5 | - | Coolant crossover gasket (2 required) |
| 6 | 8A505 | Thermostat housing inlet tube |
| 7 | 8592 | Thermostat housing |
| 8 | 9D280 | RH Fuel rail |
| 9 | 9D280 | LH Fuel rail |
| 10 | 12A699 | Knock Sensor (KS) |
