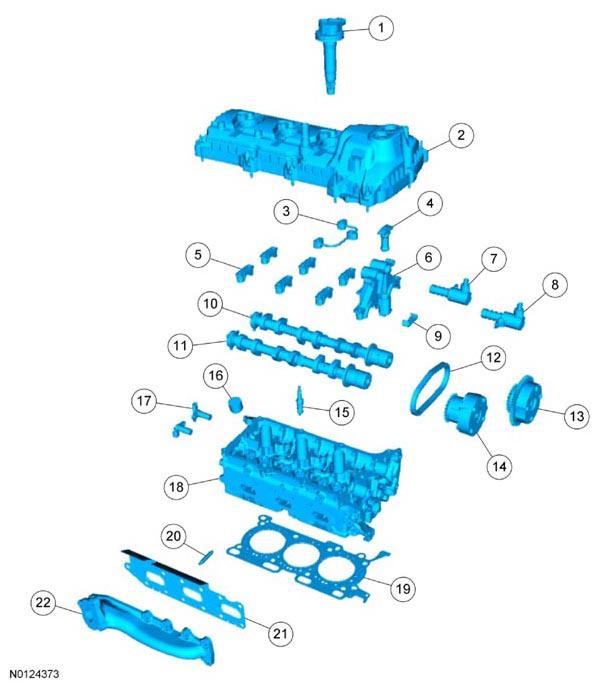

Engine Upper - RH Cylinder Head
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
| Item | Part Number | Description |
|---|---|---|
| 1 | 12029 | Ignition coil-on-plug (3 required) |
| 2 | 6582 | RH valve cover |
| 3 | 6K602 | Valve train oil feed tube |
| 4 | 6K254 | RH secondary timing chain tensioner |
| 5 | 6A258 | RH camshaft cap (6 required) |
| 6 | 6B280 | Camshaft mega cap |
| 7 | 6M280 | Intake camshaft Variable Camshaft Timing (VCT) oil control solenoid |
| 8 | 6M280 | Exhaust camshaft VCT oil control solenoid |
| 9 | 6K297 | RH secondary tensioner shoe |
| 10 | 6250 | RH intake camshaft |
| 11 | 6250 | RH exhaust camshaft |
| 12 | 6268 | RH secondary timing chain |
| 13 | 6256 | Intake camshaft VCT assembly |
| 14 | 6C525 | Exhaust camshaft VCT assembly |
| 15 | 12405 | Spark plug (3 required) |
| 16 | 6500 | Valve tappet (32 required) |
| 17 | 6B288 | RH cylinder head Camshaft Position (CMP) sensor (2 required) |
| 18 | 6049 | RH cylinder head |
| 19 | 6051 | RH cylinder head gasket |
| 20 | W712244 | RH exhaust manifold stud (8 required) |
| 21 | 9448 | RH exhaust manifold gasket |
| 22 | 9430 | RH exhaust manifold |
