LH Ignition Components
WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.
NOTE:

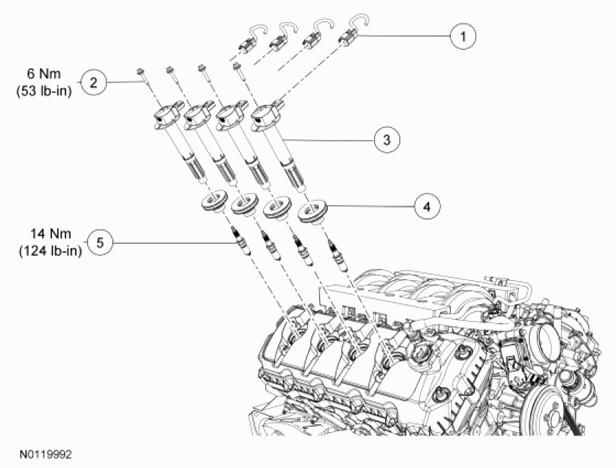

RH side shown in illustration, LH side similar
| Item | Part Number | Description |
|---|---|---|
| 1 | - | Ignition coil-on-plug electrical connector (part of 9D930) (4 required) |
| 2 | W714507 | Ignition coil-on-plug bolt (4 required) |
| 3 | 12029 | Ignition coil-on-plug (4 required) |
| 4 | 12025 | Ignition coil-on-plug seal (part of 12029) (4 required) |
| 5 | 12405 | Spark plug (4 required) |
- Refer to the procedures and/or exploded views for any Warnings, Notices, Notes, Materials, Specifications, and Special Tools. Items in the exploded views may not be listed in order of removal.
