SuperCab and Super Crew

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

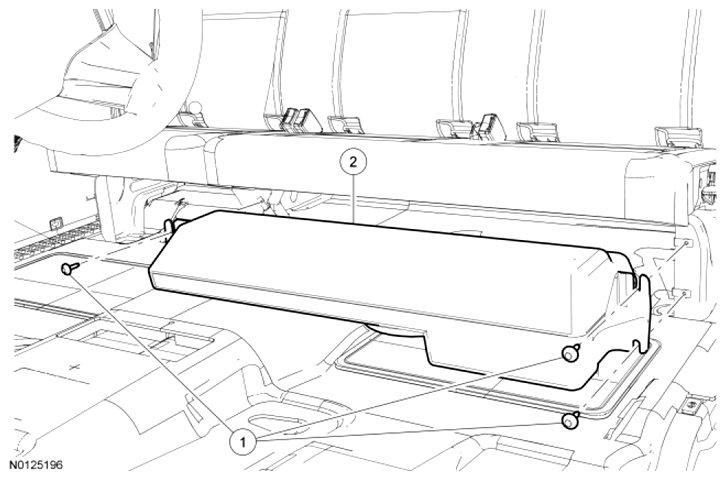

Fig 1: Identifying Speaker Enclosure Removal And Installation - SuperCab And Super Crew
G07408185Courtesy of FORD MOTOR CO.
Item Part Number Description
1 W714310 Subwoofer enclosure bolts (3 required)
2 18808 Subwoofer enclosure
