Rain Sensor: Removal

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

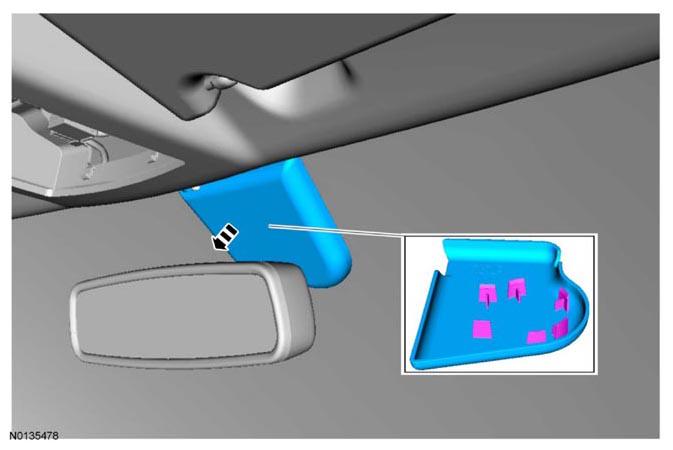

  1. Fig 1: Removing Rain Sensor Cover
    G07965893Courtesy of FORD MOTOR CO.

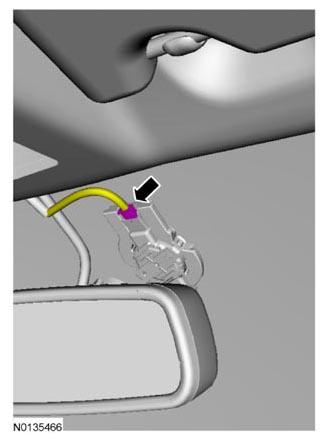

  2. Fig 2: Locating Rain Sensor Electrical Connector
    G07965894Courtesy of FORD MOTOR CO.

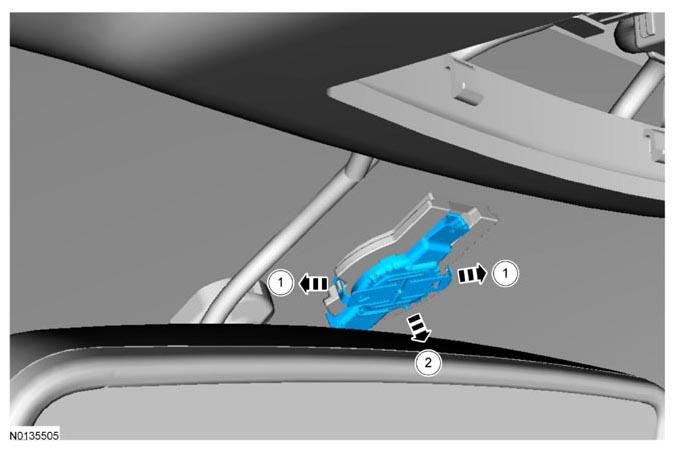

Fig 3: Removing Rain Sensor Clip
G07965895Courtesy of FORD MOTOR CO.
