Rain Sensor: Installation

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: Glass must be clean and dry.

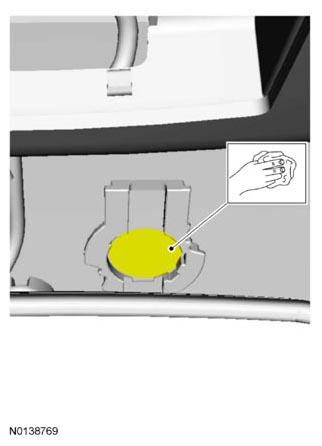

Fig 1: Cleaning Rain Sensor Glass

Courtesy of FORD MOTOR CO.

Clean the specified component with the specified material.

NOTE: If rain sensor gel is damaged or contaminated a new sensor must be installed.

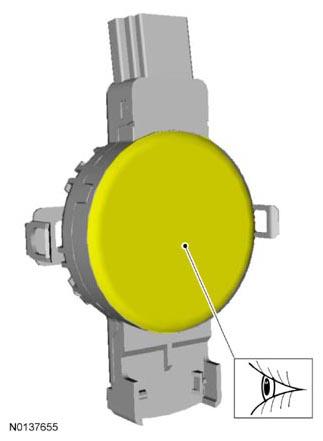

Fig 2: Checking Rain Sensor

Courtesy of FORD MOTOR CO.

If installing original rain sensor, visual check.

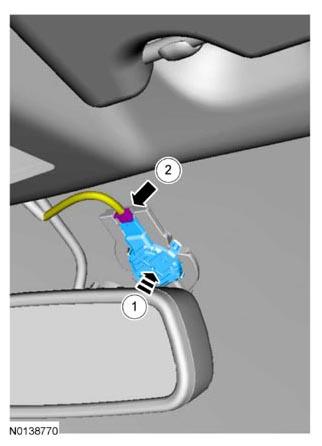

Fig 3: Locating Rain Sensor Electrical Connector
Courtesy of FORD MOTOR CO.

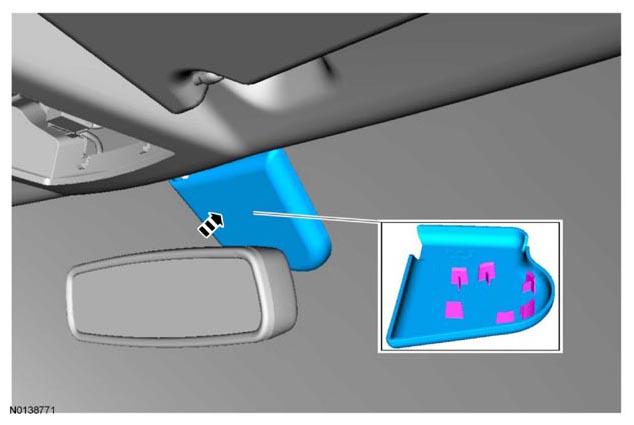

Fig 4: Installing Rain Sensor Cover

Courtesy of FORD MOTOR CO.
