Removal and Installation

WARNING: This page is about a different car, the 2012 Ford Pickup. However, it is still accessible from the selected car via links, so may be relevant.

NOTE: To access the top selector lever mechanism bolts, position the selector lever in NEUTRAL before removing the selector lever.

Remove the selector lever. For additional information, refer to SELECTOR LEVER - COLUMN SHIFT .
Disconnect the Brake Shift Interlock Actuator (BSIA) electrical connector.

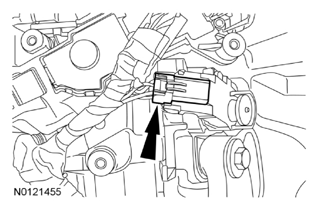

Fig 1: Locating Brake Shift Interlock Actuator Electrical Connector
Courtesy of FORD MOTOR CO.
Disconnect the selector lever cable.

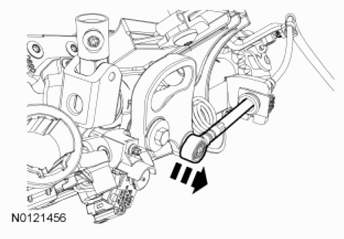

Fig 2: Disconnecting Selector Lever Cable
Courtesy of FORD MOTOR CO.
Remove and discard the 3 bolts and remove the selector lever mechanism.
- To install, tighten to 10 Nm (89 lb-in).

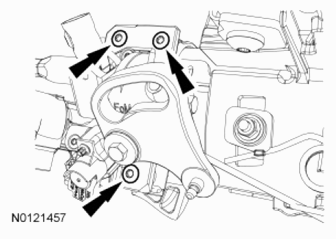

  Fig 3: Locating Bolts And Selector Lever Mechanism
  Courtesy of FORD MOTOR CO.
To install, reverse the removal procedure.
